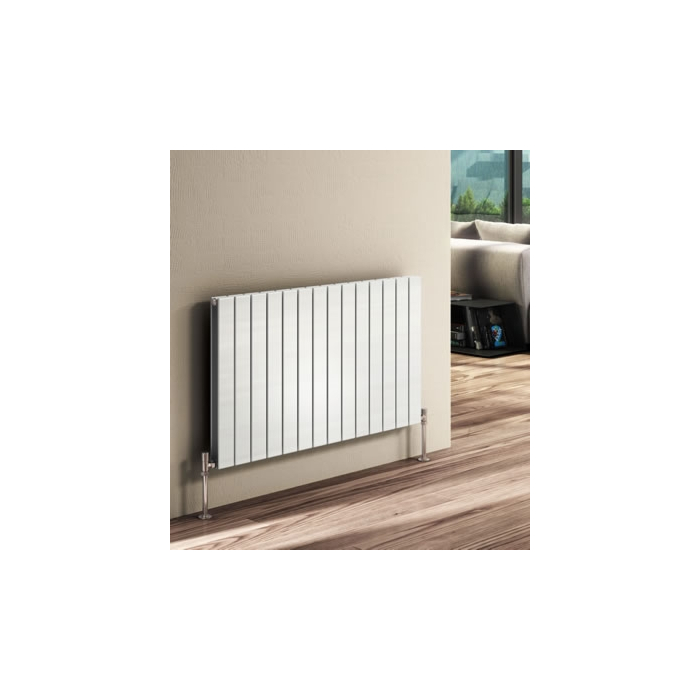

Reina Flat Horizontal White Radiators

Reina Flat Horizontal Radiators. The Reina Flat Horizontal Deisgner Radiator is a contemporary modern flat panel radiator which is backed by a manufacturers 5 year guarantee. The Reina Flat Radiator range includes horizontal and vertical models, single and double panel options and a wide variety of sizes for varying heat outputs.. Please see separate listing for the Reina Flat Vertical Radiators. Their clean lines and smooth surfaces make them a stylish addition to modern interiors.

Supplied with brackets, air and blanking vent.
Available in White Ral 9016 Gloss or Anthracite Ral 7016 Matt Finish. Also available in a selection of RAl and special finishes https://www.inspiredheating.co.uk/reina-flat-horizontal-radiators-in-ral-colour-finishes
Made from superior quality mild steel with high quality welding.
5 year manufacturers guarantee.
Delivered usually 1-2 working days. Please note for every purchase that includes this item, it will incur a single £10 excl vat carriage charge. This will be added automatically at checkout.

Not sure which valves to choose? Check out this helpful guide!

Model Reference	Height (mm)	Width (mm)	Wall To Pipe Centres (mm)	Wall Distance (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
RND-FL06	600	440	39	68	1661	487	1072	314
RND-FL08	600	588	39	68	2214	649	1429	419
RND-FL11	600	810	39	68	3044	893	1965	576
RND-FL14	600	1032	39	68	3874	1136	2501	733
RND-FL17	600	1254	39	68	4704	1379	3037	890
RND-FL19	600	1402	39	68	5257	1542	3394	995
RND-FL06D	600	440	64	93	2407	706	1554	456
RND-FL08D	600	588	64	93	3210	941	2072	607
RND-FL11D	600	810	64	93	4413	1294	2849	835
RND-FL14D	600	1032	64	93	5617	1647	3626	1063
RND-FL17D	600	1254	64	93	6822	2001	4404	1292
RND-FL19D	600	1402	64	93	7824	2294	5051	1481

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs. All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
