Name: Reina Flat Vertical Radiators
Brand: Reina
SKU: FLAT VERTICAL
Price: 97.37 GBP
Availability: InStock

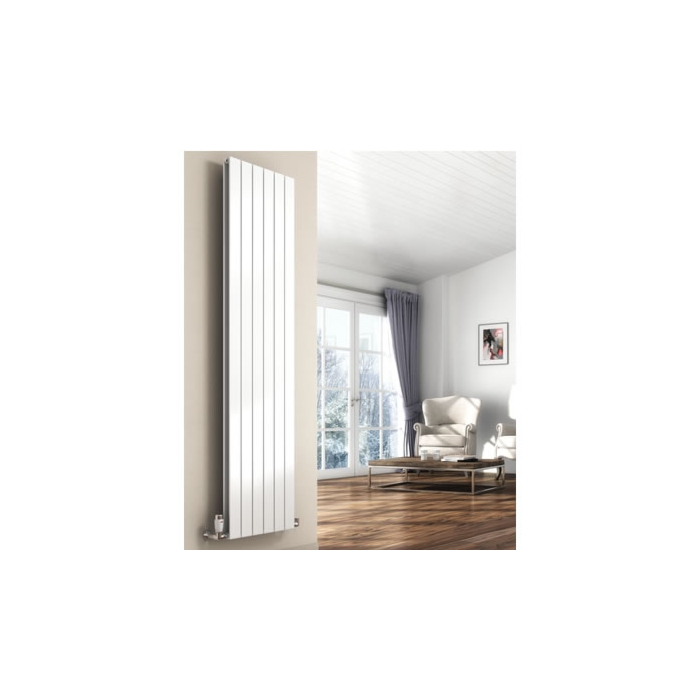

Reina Flat Vertical Radiators. The Reina Flat Vertical Radiator is a contemporary modern flat panel radiator which is backed by a manufacturers 5 year guarantee. The Reina Flat Vertical Radiator range includes horizontal and vertical models, single and double panel options and a wide variety of sizes. Please see separate listing for the Reina Flat Horizontal Radiators

Supplied with brackets, air and blanking vent.
Available in White Ral 9016 Gloss or Anthracite Ral 7016 Matt Finish.
Made from superior quality mild steel with high quality welding.
5 year manufacturers guarantee.
Delivered usually 1-2 working days

Model Reference	Height (mm)	Width (mm)	Wall To Pipe Centres (mm)	Wall Distance (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
RND-FL163	1600	218	39	68	2113	620	1364	400
RND-FL164	1600	292	39	68	2818	826	1819	533
RND-FL165	1600	366	39	68	3522	1033	2274	667
RND-FL166	1600	440	39	68	4226	1239	2728	800
RND-FL167	1600	514	39	68	4930	1446	3182	933
RND-FL183	1800	218	39	68	2378	697	1535	450
RND-FL184	1800	292	39	68	3171	930	2047	600
RND-FL185	1800	366	39	68	3962	1162	2558	750
RND-FL186	1800	440	39	68	4755	1394	3070	900
RND-FL187	1800	514	39	68	5549	1627	3582	1050
RND-FL163D	1600	218	64	93	2684	787	1733	508
RND-FL164D	1600	292	64	93	3578	1049	2310	677
RND-FL165D	1600	366	64	93	4509	1322	2911	853
RND-FL166D	1600	440	64	93	5509	1616	3556	1043
RND-FL167D	1600	514	64	93	6311	1851	4074	1195
RND-FL183D	1800	218	64	93	3092	907	1996	586
RND-FL184D	1800	292	64	93	4123	1209	2662	780
RND-FL185D	1800	366	64	93	5191	1522	3351	983
RND-FL186D	1800	440	64	93	6230	1827	4022	1179
RND-FL187D	1800	514	64	93	7268	2131	4692	1376

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs. All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
