Reina Flat Horizontal Radiators in RAL Colour Finishes

Reina Flat Horizontal Radiators in RAL Colour Finishes.

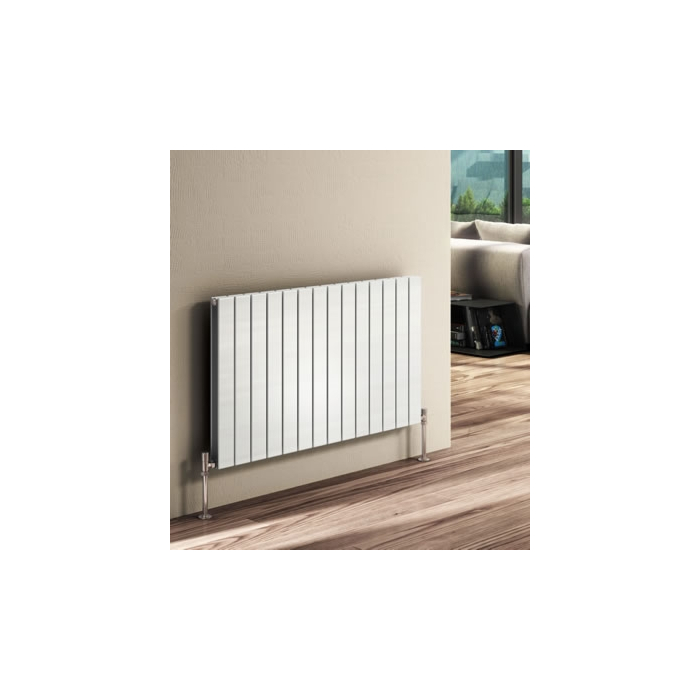

Reina Flat Horizontal Radiators are available in a choice of 53 exciting RAL / SPECIAL Colours and Finishes. All finishes are powder coated and available within 8-15 working days. These radiators are characterised by their sleek, flat panel design, which contributes to a contemporary and minimalist look in any room. The Reina Flat Radiator is backed by a manufacturers 5 year guarantee and is available in a wide choice of sizes as well as vertical models. Also available off the shelf in White or Anthracite finish. Please see links below for other Reina Flat options.

Reina's RAL color option empowers you to create a truly personalised heating solution that seamlessly integrates with your home's aesthetic.

Supplied with brackets, air and blanking vent.

Please note; Reina Flat RAL Coloured radiators are made to order and as such are non-returnable unless faulty.

Need help choosing the right valves? Check out this useful guide!

Please note for every purchase that includes this item, it will incur a single £10 excl vat carriage charge. This will be added automatically at checkout.

Model Reference	Height (mm)	Width (mm)	Wall To Pipe Centres (mm)	Wall Distance (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
RND-FL06	600	440	39	68	1661	487	1072	314
RND-FL08	600	588	39	68	2214	649	1429	419
RND-FL11	600	810	39	68	3044	893	1965	576
RND-FL14	600	1032	39	68	3874	1136	2501	733
RND-FL17	600	1254	39	68	4704	1379	3037	890
RND-FL19	600	1402	39	68	5257	1542	3394	995
RND-FL06D	600	440	64	93	2407	706	1554	456
RND-FL08D	600	588	64	93	3210	941	2072	607
RND-FL11D	600	810	64	93	4413	1294	2849	835
RND-FL14D	600	1032	64	93	5617	1647	3626	1063
RND-FL17D	600	1254	64	93	6822	2001	4404	1292
RND-FL19D	600	1402	64	93	7824	2294	5051	1481

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs. All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
