ACV Heatmaster TC Evo 120Kw
SKU
heatmaster 120 tc evo
As low as
£11,394.00
£9,495.00

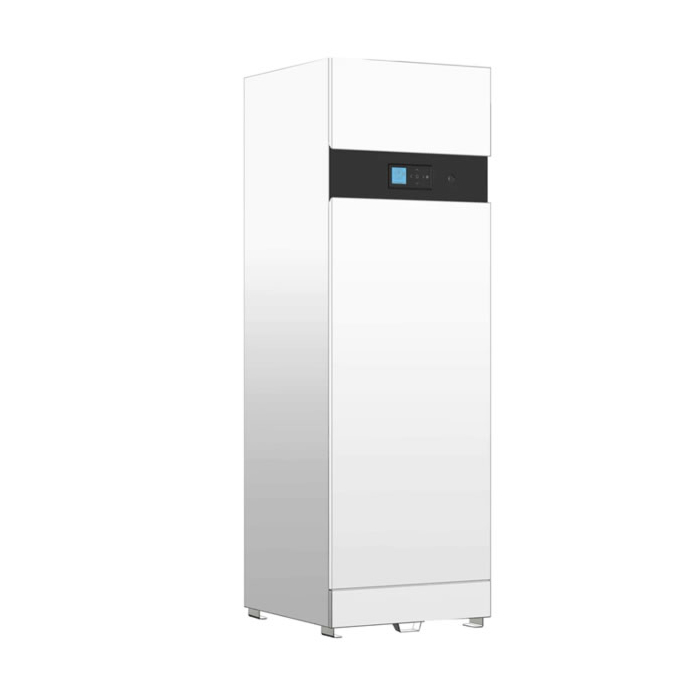

Heatmaster TC Evo Condensing Boiler 120kW
Heatmaster TC Evo Condensing Boiler 120kW
Combined gas fired condensing boiler and water heater with stainless steel heat exchanger.
- 5-Year Warranty
- Tank-in-Tank technology
- Nat Gas and LPG
- Heating and hot water from one unit saves space, reduces energy use and speeds up installation
- Operates in most efficient mode (condensing) for both heating and hot water
- Low maintenance with no anode protection required
- Reduces legionella risk due to temperature stored at > 60°C
- Corrosion-resistant stainless steel heat exchanger and tank reduces maintenance and increases system lifespan
- Suited to high demand and critical hot water premises such as hotels and hospitals
- Easy to use standardised controls using ACVMax control system
- Combine with Prestige® heat only boilers or Smart cylinder for highly efficient heating and hot water performance all from one manufacturer
- Suitable for vented or unvented systems (optional unvented kit required)
- Supplied with LPG kit for simple on-site conversion
- Improved access for service and maintenance
- Supplied with factory fitted T&P relief valve
Constructive characteristics | Â | HeatMaster 120 TC Evo |
 |  |  |
Capacity (total) | L | 315 |
Capacity (primary) | L | 125 |
Capacity (domestic hot water) | L | 190 |
Capacity expansion tank(s) | L | - |
Chimney: Max pressure drop in flue pipe | Pa | 170 |
Chimney: max length of concentric flue pipe | m | 21 |
Chimney connection | Ømm | 100/150 |
Connection - heating | Ø" | 1 ½ F |
Connection - DHW | Ø" | 1 M |
Connection gas | Ø" | 3/4 M |
Connection - safety valve | Ø" | 1/2 M |
Max operating temperature | °C | 87 |
Water pressure drop boiler at Δt = 20°C | mbar | 27 |
Max service pressure heating (primary) | bar | 3 |
Max service pressure (DHW) | bar | 8,6 |
Height when tilted | mm | 2270 |
Weight (empty) | kg | 299 |
 |  |  |
Heating characteristics | Â | HeatMaster 120 TC Evo |
 |  |  |
Pre-heating time from 10 to 80°C (Heat source: boiler) | min | 23 |
Reheat time from 40 to 90°C | min | 30 |
Reheat time from 40 to 80°C | min | 15 |
Heating time from 10 to 90°C | min | 38 |
 |  |  |
Combustion | Â | HeatMaster 120 TC Evo |
 |  |  |
Input max (heating) HCV | kW | 127,7 |
Input max (heating) LCV | kW | 115 |
Combustion efficiency | % | 97,5 |
Efficiency at 30% load (EN677) | % | 108 |
Efficiency at 100% load (50/30°C) | % | 105,8 |
Efficiency (max output) 80/60°C | % | 97 |
Efficiency (min output) 80/60°C | % | 97,1 |
Efficiency DHW mode ΔT 30K | % | 102,2 |
CO emissions max output | ppm | 50 |
CO emissions min output | ppm | 4 |
Mass rate of combustion products (gas) | kg/h | 183 |
NOx weighted (GCV) (EN15502) | mg/kWh | 39,8 |
NOx class (EN15502) | Â | 6 |
Output power max (80/60°C) | kW | 111,7 |
Output power min (80/60°C) | kW | 22,9 |
Gas flow rate (min output) | m³/h | 2,45 |
 |  |  |
Domestic hot water performance | Â | HeatMaster 120 TC Evo |
 |  |  |
Peak flow at 40°C | L/10’ | 900 |
Peak flow 1st hour at 40°C | L/60’ | 3620 |
Continuous flow at 40°C | L/h | 3402 |
Peak flow at 45°C | L/10’ | 676 |
Peak flow 1st hour at 45°C | L/60’ | 3098 |
Continuous flow at 45°C | L/h | 2928 |
Peak flow at 60°C | L/10’ | 440 |
Peak flow 1st hour at 60°C | L/60’ | 1847 |
Continuous flow at 60°C | L/h | 1754 |
 |  |  |
Electrical Characteristics | Â | HeatMaster 120 TC Evo |
 |  |  |
Voltage | V | 230 |
Frequency | Hz | 50 |
Protection IP | Â | 20 |
Electrical consumption | W | 327 |
Electrical power requirements | A | 2 |
 |  |  |
Eco Design Fields | Â | HeatMaster 120 TC Evo |
 |  |  |
Space heating energy efficiency class | Â | A |
Seasonal space heating efficiency (35°C) | % | 92 |
Declared load profile | Â | XXL |
Water heating energy efficiency class | Â | A |
Water heating energy efficiency [ηwh] (EU 814/2013 Art 2 (15) Ann.IV-3) | % | 85 |
Sound power level indoors LWA | dB | 62 |
Brand | ACV |
---|---|
SKU | heatmaster 120 tc evo |
