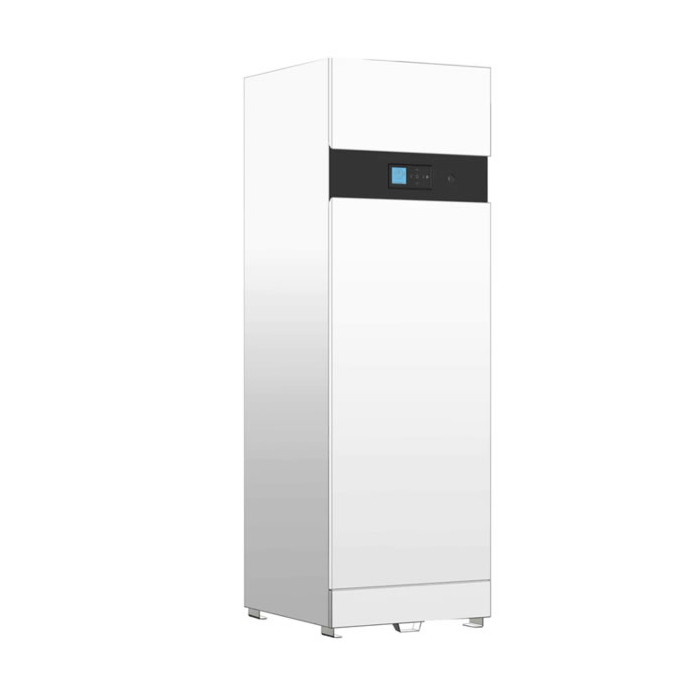

Heatmaster TC Evo Condensing Boiler (70kW to 85kW)
Combined gas fired condensing boiler and water heater with stainless steel heat exchanger.
- 5-Year Warranty
- Tank-in-Tank technology
- Nat Gas and LPG
- Heating and hot water from one unit saves space, reduces energy use and speeds up installation
- Operates in most efficient mode (condensing) for both heating and hot water
- Low maintenance with no anode protection required
- Reduces legionella risk due to temperature stored at > 60°C
- Corrosion-resistant stainless steel heat exchanger and tank reduces maintenance and increases system lifespan
- Suited to high demand and critical hot water premises such as hotels and hospitals
- Easy to use standardised controls using ACVMax control system
- Combine with Prestige® heat only boilers or Smart cylinder for highly efficient heating and hot water performance all from one manufacturer
- Suitable for vented or unvented systems (optional unvented kit required)
- Supplied with LPG kit for simple on-site conversion
- Improved access for service and maintenance
- Supplied with factory fitted T&P relief valve
| Constructive characteristics | HeatMaster 70 TC Evo | HeatMaster 85 TC Evo | |
| Capacity (total) | L | 315 | 315 |
| Capacity (primary) | L | 125 | 125 |
| Capacity (domestic hot water) | L | 190 | 190 |
| Capacity expansion tank(s) | L | - | - |
| Chimney: Max pressure drop in flue pipe | Pa | 150 | 150 |
| Chimney: max length of concentric flue pipe | m | 22 | 22 |
| Chimney connection | Ømm | 100/150 | 100/150 |
| Connection - heating | Ø" | 1 ½ F | 1 ½ F |
| Connection - DHW | Ø" | 1 M | 1 M |
| Connection gas | Ø" | 3/4 M | 3/4 M |
| Connection - safety valve | Ø" | 1/2 M | 1/2 M |
| Max operating temperature | °C | 87 | 87 |
| Water pressure drop boiler at Δt = 20°C | mbar | 9 | 14 |
| Max service pressure heating (primary) | bar | 3 | 3 |
| Max service pressure (DHW) | bar | 8,6 | 8,6 |
| Height when tilted | mm | 2270 | 2270 |
| Weight (empty) | kg | 298 | 298 |
| Heating characteristics | HeatMaster 70 TC Evo | HeatMaster 85 TC Evo | |
| Pre-heating time from 10 to 80°C (Heat source: boiler) | min | 27 | 24 |
| Reheat time from 40 to 90°C | min | 37 | 36 |
| Reheat time from 40 to 80°C | min | 18 | 16 |
| Heating time from 10 to 90°C | min | 47 | 43 |
| Combustion | HeatMaster 70 TC Evo | HeatMaster 85 TC Evo | |
| Input max (heating) HCV | kW | 77,6 | 94,4 |
| Input max (heating) LCV | kW | 69,9 | 85 |
| Combustion efficiency | % | 98,1 | 98 |
| Efficiency at 30% load (EN677) | % | 109,0 | 108 |
| Efficiency at 100% load (50/30°C) | % | 105,8 | 105,8 |
| Efficiency (max output) 80/60°C | % | 97,3 | 97 |
| Efficiency (min output) 80/60°C | % | 97,3 | 97,5 |
| Efficiency DHW mode ΔT 30K | % | 103,9 | 103,9 |
| CO emissions max output | ppm | 34 | 51 |
| CO emissions min output | ppm | 7 | 6 |
| Mass rate of combustion products (gas) | kg/h | 114 | 111 |
| NOx weighted (GCV) (EN15502) | mg/kWh | 33,1 | 29,3 |
| NOx class (EN15502) | 6 | 6 | |
| Output power max (80/60°C) | kW | 68,0 | 82,9 |
| Output power min (80/60°C) | kW | 20,9 | 20,5 |
| Gas flow rate (min output) | m³/h | 2,2 | 2,1 |
| Domestic hot water performance | HeatMaster 70 TC Evo | HeatMaster 85 TC Evo | |
| Peak flow at 40°C | L/10’ | 716 | 783 |
| Peak flow 1st hour at 40°C | L/60’ | 2455 | 2895 |
| Continuous flow at 40°C | L/h | 2087 | 2534 |
| Peak flow at 45°C | L/10’ | 592 | 646 |
| Peak flow 1st hour at 45°C | L/60’ | 2083 | 2456 |
| Continuous flow at 45°C | L/h | 1789 | 2172 |
| Peak flow at 60°C | L/10’ | 348 | 371 |
| Peak flow 1st hour at 60°C | L/60’ | 1391 | 1638 |
| Continuous flow at 60°C | L/h | 1252 | 1520 |
| Electrical Characteristics | HeatMaster 70 TC Evo | HeatMaster 85 TC Evo | |
| Voltage | V | 230 | 230 |
| Frequency | Hz | 50 | 50 |
| Protection IP | 20 | 20 | |
| Electrical consumption | W | 210 | 266 |
| Electrical power requirements | A | 1,4 | 1,7 |
| Eco Design Fields | HeatMaster 70 TC Evo | HeatMaster 85 TC Evo | |
| Space heating energy efficiency class | A | A | |
| Seasonal space heating efficiency (35°C) | % | 93 | 92 |
| Declared load profile | XXL | XXL | |
| Water heating energy efficiency class | A | A | |
| Water heating energy efficiency [ηwh] (EU 814/2013 Art 2 (15) Ann.IV-3) | % | 85,0 | 85 |
| Sound power level indoors LWA | dB | 60 | 61 |
