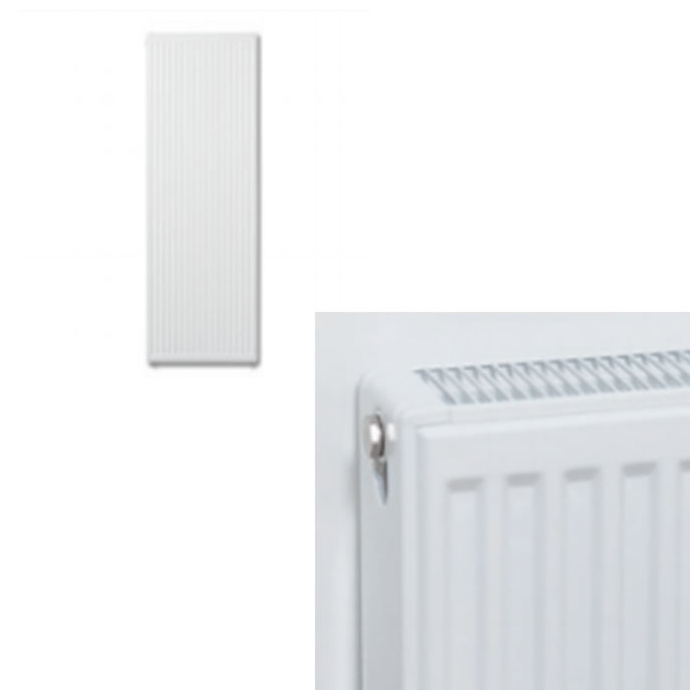

Ultraheat Compact 6 DS Double Panel Double Conv Vertical Radiators

Easy-fit, high efficiency radiators with a wide choice of sizes and shapes to suit any room at home or in the workspace.

Ultraheat Compact 6 vertical radiators feature two pairs of underside vertical tappings, providing a choice of widely-spaced paired valves, or a central, under-mounted H valve or most conventional paired valves. The flow direction must be left to right and the air-vent should be positioned on the right.

All tappings are ½” BSP female and are compatible with both parallel-threaded + O-ring or taper-threaded valve tails.

White RAL 9016
10 year guarantee
Delivered usually within 2/3 working days

Please note for every purchase that includes this item, it will incur a single £15 excl vat carriage charge. This will be added automatically at checkout.

Model	Height (mm)	Width (mm)	Watts 50 degrees	Btu's 50 degrees	Wall to Face (mm)	Wall to Pipe Centres (mm)
18VDS400	1800	400	1584	5405	127	77
18VDS500	1800	500	1980	6756	127	77
18VDS600	1800	600	2376	8107	127	77
20VDS400	2000	400	1716	5855	127	77
20VDS500	2000	500	2145	7319	127	77
20VDS600	2000	600	2574	8783	127	77
