Name: Ultraheat Compact 4 SF Single Radiators
Brand: Ultraheat
SKU: ULTRAHEAT COMPACT SINGLE

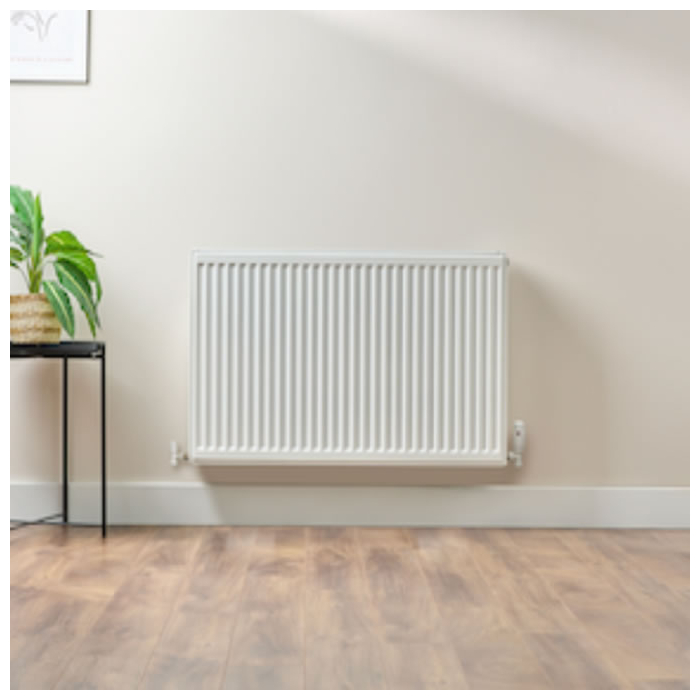

Ultraheat Compact 4 SF Single Radiators, Single panel, single convector. Easy-fit, high efficiency radiators with a wide choice of sizes and shapes to suit any room at home or in the workspace. The most popular choice of heating solution amongst professional fitters of domestic radiators.

White RAL 9016
10 year guarantee Radiator Depth: 50mm
Depth from Wall to Pipe Centres: 37-48mm
Depth from Wall to Face: 68-79mm
Delivered usually within 3-4 working days - dependant on weight. Please note for every purchase that includes this item, it will incur a single £15 excl vat carriage charge. This will be added automatically at checkout.

Please be aware that our quoted output figures are based at Delta T 50 - this is the industry standard, based on mean water temperature of 70C (75C inlet, 65C outlet, 20C room). Other web sites may state higher outputs for the same radiator as they quote figues based at Delta T 60 which can be a little misleading.

Model	Height (mm)	Width (mm)	Watts 50 degrees	Btu's 50 degrees
3SF400	300	400	206	703
3SF500	300	500	258	880
3SF600	300	600	309	1054
3SF700	300	700	361	1232
3SF800	300	800	412	1406
3SF900	300	900	464	1583
3SF1000	300	1000	515	1757
3SF1100	300	1100	567	1935
3SF1200	300	1200	618	2109
3SF1300	300	1300	670	2286
3SF1400	300	1400	721	2460
3SF1600	300	1600	824	2812
3SF1800	300	1800	924	3163
3SF2000	300	2000	1030	3515
3SF2200	300	2200	1133	3866
3SF2400	300	2400	1236	4217
4SF400	400	400	271	925
4SF500	400	500	339	1157
4SF600	400	600	406	1385
4SF700	400	700	474	1617
4SF800	400	800	542	1849
4SF900	400	900	609	2078
4SF1000	400	1000	677	2310
4SF1100	400	1100	745	2542
4SF1200	400	1200	812	2771
4SF1300	400	1300	880	3003
4SF1400	400	1400	948	3235
4SF1500	400	1500	1016	3467
4SF1600	400	1600	1083	3695
4SF1800	400	1800	1219	4159
4SF2000	400	2000	1354	4620
4SF2200	400	2200	1489	5081
4SF2400	400	2400	1625	5545
5SF400	500	400	331	1129
5SF500	500	500	414	1413
5SF600	500	600	497	1696
5SF700	500	700	580	1979
5SF800	500	800	662	2259
5SF900	500	900	745	2542
5SF1000	500	1000	828	2825
5SF1100	500	1100	911	3108
5SF1200	500	1200	994	3392
5SF1300	500	1300	1076	3671
5SF1400	500	1400	1159	3955
5SF1500	500	1500	1242	4238
5SF1600	500	1600	1325	4521
5SF1800	500	1800	1490	5084
5SF2000	500	2000	1656	5651
5SF2200	500	2200	1822	6217
5SF2400	500	2400	1987	6780

Model	Height (mm)	Width (mm)	Watts 50 degrees	Btu's 50 degrees
6SF400	600	400	387	1320
6SF500	600	500	484	1651
6SF600	600	600	581	1982
6SF700	600	700	678	2313
6SF800	600	800	774	2641
6SF900	600	900	871	2972
6SF1000	600	1000	968	3303
6SF1100	600	1100	1065	3634
6SF1200	600	1200	1162	3965
6SF1300	600	1300	1258	4292
6SF1400	600	1400	1355	4623
6SF1500	600	1500	1452	4954
6SF1600	600	1600	1549	5285
6SF1800	600	1800	1742	5944
6SF2000	600	2000	1936	6606
6SF2200	600	2200	2130	7268
6SF2400	600	2400	2323	7926
7SF400	700	400	438	1495
7SF500	700	500	548	1870
7SF600	700	600	658	2245
7SF700	700	700	767	2617
7SF800	700	800	877	2992
7SF900	700	900	986	3364
7SF1000	700	1000	1096	3740
7SF1100	700	1100	1206	4115
7SF1200	700	1200	1315	4487
7SF1300	700	1300	1425	4862
7SF1400	700	1400	1534	5234
7SF1500	700	1500	1644	5610
7SF1600	700	1600	1754	5985
7SF1800	700	1800	1973	6732
7SF2000	700	2000	2192	7479
7SF2200	700	2200	2411	8227
7SF2400	700	2400	2630	8974
9SF400	900	400	527	1798
9SF500	900	500	659	2249
9SF600	900	600	791	2699
9SF700	900	700	923	3149
9SF800	900	800	1054	3596
9SF900	900	900	1186	4047
9SF1000	900	1000	1318	4497
9SF1200	900	1200	1582	5398
9SF1400	900	1400	1845	6295
