TRC Ancona 4 Column 300mm High Radiators - Stock in White

SKU
ANCS4C30W
As low as £134.40 £112.00
TRC Ancona 4 Column 300mm High Radiators - Stock in White

The Radiator Company Ancona Stock is a best selling sectional multi column radiator range, incredibly versatile with literally hundreds of possible sizes in 2, 3 or 4 columns from 3 - 40 section, in a choice of 5 mounting options (slip on feet, cast feet or std, solid or stud wall brackets) all available from stock in white RAL 9016 for 3 - 5 working days delivery.

The Radiator Company Ancona is also available in Made To Order sizes as well as Special Finishes and RAL colours - Please see our separate listings.

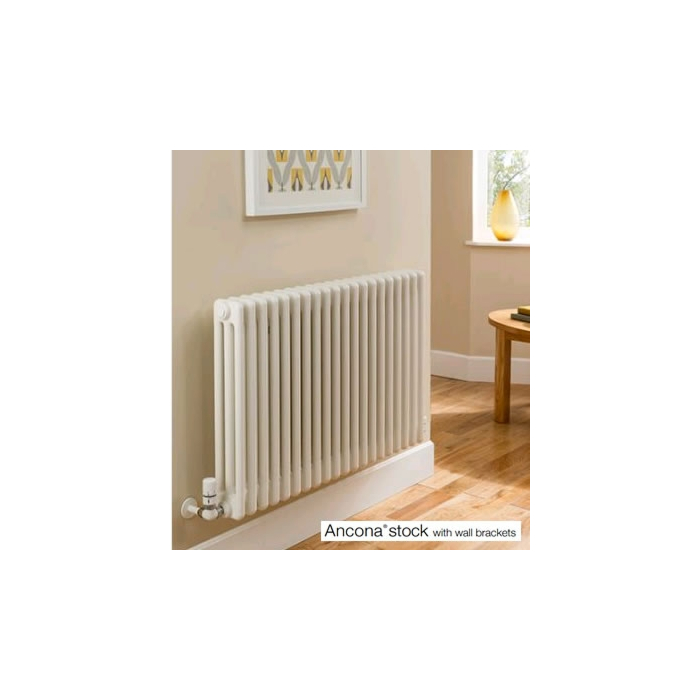

The Ancona stock radiator can be mounted in one of three ways; for a contemporary look choose Slip on Welded Feet; for a classic look choose Cast Feet; or by selecting Wall Brackets you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.

Pipe centres from wall (based on adjustable wall ties) = 102mm to 112mm
Wall Bracket Length: 211mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.
Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.

10 YEAR GUARANTEE

PLEASE NOTE: Widths include measurement for bushes, plesae note due to manufacturing tolerances widths shown may vary by +/-2mm

Model No of Sects Width (mm) Watts 50 degrees Btu's 50 degrees
ANCS4C30W 5 251 210 717
ANCS4C30W 6 296 252 860
ANCS4C30W 7 341 294 1003
ANCS4C30W 8 386 336 1146
ANCS4C30W 9 431 378 1290
ANCS4C30W 10 476 420 1433
ANCS4C30W 11 521 462 1576
ANCS4C30W 12 566 504 1720
ANCS4C30W 13 611 546 1863
ANCS4C30W 14 656 588 2006
ANCS4C30W 15 701 630 2150
ANCS4C30W 16 746 672 2293
ANCS4C30W 17 791 714 2436
ANCS4C30W 18 836 756 2579
ANCS4C30W 19 881 798 2723
ANCS4C30W 20 926 840 2866
ANCS4C30W 21 971 882 3009
ANCS4C30W 22 1016 924 3153
ANCS4C30W 23 1061 966 3296
ANCS4C30W 24 1106 1008 3439
ANCS4C30W 25 1151 1050 3583
ANCS4C30W 26 1196 1092 3726
ANCS4C30W 27 1241 1134 3869
ANCS4C30W 28 1286 1176 4013
ANCS4C30W 29 1331 1218 4156
ANCS4C30W 30 1376 1260 4299
ANCS4C30W 31 1421 1302 4442
ANCS4C30W 32 1466 1344 4586
ANCS4C30W 33 1511 1386 4729
ANCS4C30W 34 1556 1428 4872
ANCS4C30W 35 1601 1470 5016
ANCS4C30W 36 1646 1512 5159
ANCS4C30W 37 1691 1554 5302
ANCS4C30W 38 1736 1596 5446
ANCS4C30W 39 1781 1638 5589
ANCS4C30W 40 1826 1680 5732
Full Features
SKU ANCS4C30W
Brand The Radiator Company
Columns 4 Column
