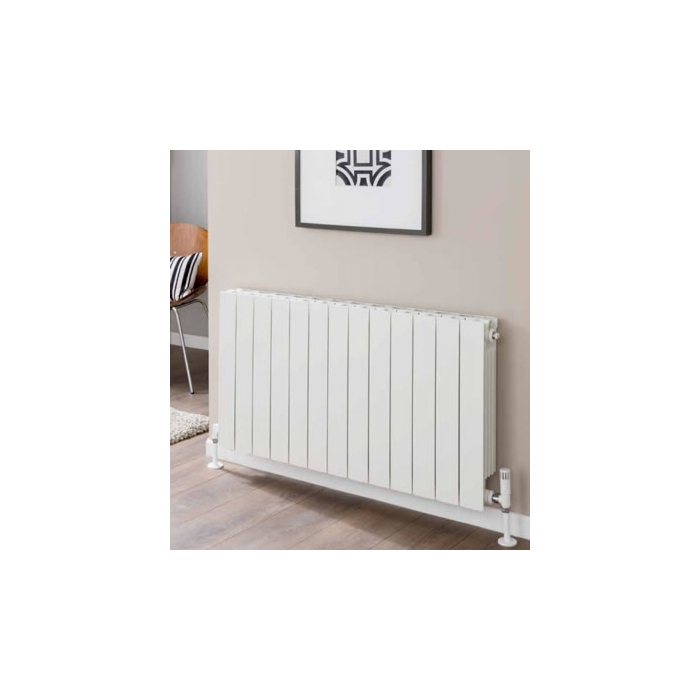

The Inspired Flat Top Aluminium Radiator range is the simplest of all our aluminium models and can be complemented with end panels to complete a minimalist design.

This modern and efficient radiator is constructed from aluminium which means it is lightweight, has a low water content and achieves an excellent heat output.

If you don't see the size you require please call us as there may be alternatives available.

• RAL 9010 White powder coated finish

• Also available in a wide selection of RAL colours

• Supplied with Wall Brackets and Manual Airvent

• Usually available within 3 - 5 working days

• 10 YEAR GUARANTEE.

Model	Height A (mm)	Width B (mm)	Sections	Watts 50 degrees	Btu's 50 degrees
ALUFL44X7	440	580	7	658	2245
ALUFL44X8	440	660	8	752	2566
ALUFL44X9	440	740	9	846	2887
ALUFL44X10	440	820	10	940	3207
ALUFL44X11	440	900	11	1034	3528
ALUFL44X12	440	980	12	1128	3849
ALUFL44X13	440	1060	13	1222	4169
ALUFL44X14	440	1140	14	1316	4490
ALUFL44X15	440	1220	15	1410	4811
ALUFL44X16	440	1300	16	1504	5132
ALUFL44X17	440	1360	17	1598	5452
ALUFL44X18	440	1460	18	1692	5773
ALUFL44X19	440	1540	19	1786	6094
ALUFL44X20	440	1620	20	1880	6415
ALUFL59X7	590	580	7	861	2938
ALUFL59X8	590	660	8	984	3357
ALUFL59X9	590	740	9	1107	3777
ALUFL59X10	590	820	10	1230	4197
ALUFL59X11	590	900	11	1353	4616
ALUFL59X12	590	980	12	1476	5036
ALUFL59X13	590	1060	13	1599	5456
ALUFL59X14	590	1140	14	1722	5875
ALUFL59X15	590	1220	15	1845	6295
ALUFL59X16	590	1300	16	1968	6715
ALUFL59X17	590	1360	17	2091	7134
ALUFL59X18	590	1460	18	2214	7554
ALUFL59X19	590	1540	19	2337	7974
ALUFL59X20	590	1620	20	2460	8394

Model	Height A (mm)	Width B (mm)	Sections	Watts 50 degrees	Btu's 50 degrees
ALUFL69X7	690	580	7	994	3392
ALUFL69X8	690	660	8	1136	3876
ALUFL69X9	690	740	9	1278	4361
ALUFL69X10	690	820	10	1420	4845
ALUFL69X11	690	900	11	1562	5330
ALUFL69X12	690	980	12	1704	5814
ALUFL69X13	690	1060	13	1846	6299
ALUFL69X14	690	1140	14	1988	6783
ALUFL69X15	690	1220	15	2130	7268
ALUFL69X16	690	1300	16	2272	7752
ALUFL69X17	690	1360	17	2414	8237
ALUFL69X18	690	1460	18	2556	8721
ALUFL69X19	690	1540	19	2698	9206
ALUFL69X20	690	1620	20	2840	9690
ALUFL79X7	790	580	7	1127	3845
ALUFL79X8	790	660	8	1288	4395
ALUFL79X9	790	740	9	1449	4944
ALUFL79X10	790	820	10	1610	5493
ALUFL79X11	790	900	11	1771	6043
ALUFL79X12	790	980	12	1932	6592
ALUFL79X13	790	1060	13	2093	7141
ALUFL79X14	790	1140	14	2254	7691
ALUFL79X15	790	1220	15	2415	8240
ALUFL79X16	790	1300	16	2576	8789
ALUFL79X17	790	1360	17	2737	9339
ALUFL79X18	790	1460	18	2898	9888
ALUFL79X19	790	1540	19	3059	10437
ALUFL79X20	790	1620	20	3220	10987
