DQ Strata Vertical Ral Colour Radiators
DQ Strata Vertical Ral Colour Radiators
The DQ Strata Radiator range has sleek and simple lines and is available in vertical and horizontal options.
The Strata vertical radiator fits into any room environment.
It comes in four widths and is available in wide choice of RAL colours. Please select in drop-down selection box.
Please see separate listing for White RAL 9016 and Textured Anthracite options.
5 year guarantee
RAL Colour finishes are usually available within 5 - 7 working days and are a bespoke made to order item and Non returnable.
We recommend obtaining a RAL colour swatch before placing your order.

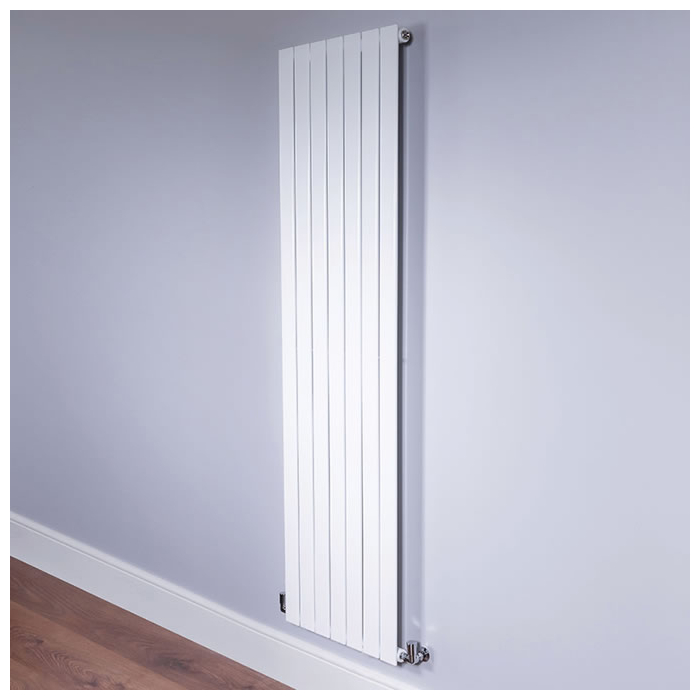

Image shown in White RAL 9016 finish - radiator supplied will be in your chosen RAL colour.
Wall to front face = 71mm
Wall to pipe centres = 41mm
Â
| Model | Height H (mm) | Width W (mm) | Type | Watts 50 degrees | Btu's 50 degrees |
|---|---|---|---|---|---|
| STRATA 180/3 | 1800 | 224 | Single | 402 | 1372 |
| STRATA 180/5 | 1800 | 376 | Single | 670 | 2286 |
| STRATA 180/7 | 1800 | 528 | Single | 938 | 3200 |
| STRATA 180/9 | 1800 | 680 | Single | 1206 | 4115 |
| STRATA 180/3D | 1800 | 224 | Double | 627 | 2139 |
| STRATA 180/5D | 1800 | 376 | Double | 1045 | 3566 |
| STRATA 180/7D | 1800 | 528 | Double | 1463 | 4992 |
| STRATA 180/9D | 1800 | 680 | Double | 1881 | 6418 |
| Brand | DQ |
|---|---|
| SKU | STRATA VERTICAL RAL |
