DQ Strata Horizontal Ral Colour Radiators
DQ Strata Horizontal Ral Colour Radiators
The DQ Strata Radiator range has sleek and simple lines and is available in horizontal and vertical options.
The Strata horizontal radiator fits into any room environment.
It comes in two heights and four widths and is available in wide choice of RAL colours. Please select in drop-down selection box.
5 year guarantee
RAL Colour finishes are usually available within 5 - 7 working days and are a bespoke made to order item and Non returnable.
We recommend obtaining a RAL colour swatch before placing your order.

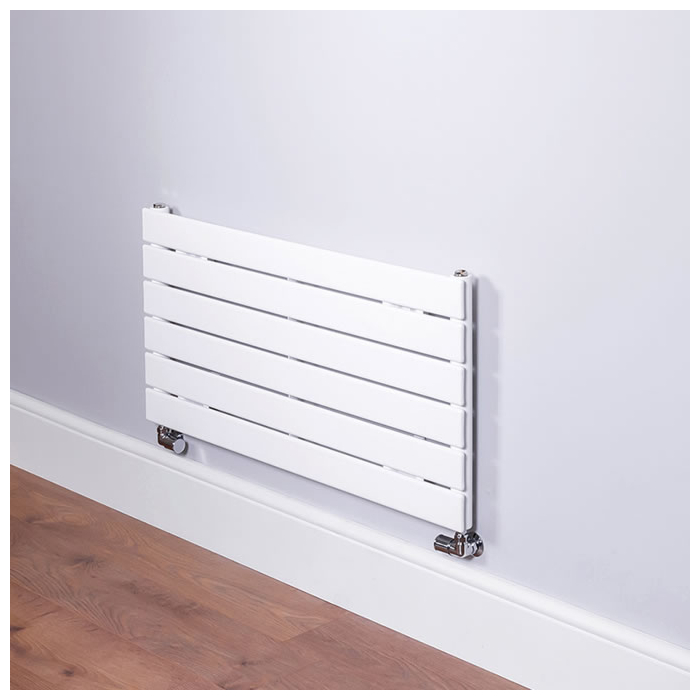

Image shown in White RAL 9016 finish - radiator supplied will be in your chosen RAL colour.
Please see separate listing for White RAL 9016 and Textured Anthracite options.
Single Radiator
Wall to front face = 63mm
Wall to pipe centres = 33mm
Double Radiator
Wall to front face = 112mm
Wall to pipe centres = 82mm
| Model | Height H (mm) | Width W (mm) | Type | Watts 50 degrees | Btu's 50 degrees |
|---|---|---|---|---|---|
| STRATA 90/6 | 452 | 900 | Single | 420 | 1433 |
| STRATA 120/6 | 452 | 1200 | Single | 552 | 1883 |
| STRATA 90/8 | 604 | 900 | Single | 560 | 1911 |
| STRATA 120/8 | 604 | 1200 | Single | 736 | 2511 |
| STRATA 90/6 | 452 | 900 | Double | 654 | 2231 |
| STRATA 120/6 | 452 | 1200 | Double | 858 | 2927 |
| STRATA 90/8 | 604 | 900 | Double | 872 | 2975 |
| STRATA 120/8 | 604 | 1200 | Double | 1144 | 3903 |
| Brand | DQ |
|---|---|
| SKU | STRATA HORIZONTAL RAL |
