Warmup Ultralight Underfloor Heating Boards

Ultralight is a specialised composite board designed for floor heating applications. Manufactured as flat, flexible sheets they are water and mould-resistant.The top surface incorporates a heat spreading aluminium layer combined with non-woven fleece.

Ultralight is the next generation of insulation by Warmup, developed for faster heat up times and to offer an easier, more flexible installation.

Insulation dramatically improves the energy-efficiency of underfloor heating as it assists in preventing the heat produced by the system escaping into the subfloor below – thereby keeping the radiant warmth within the room whilst reducing energy costs.

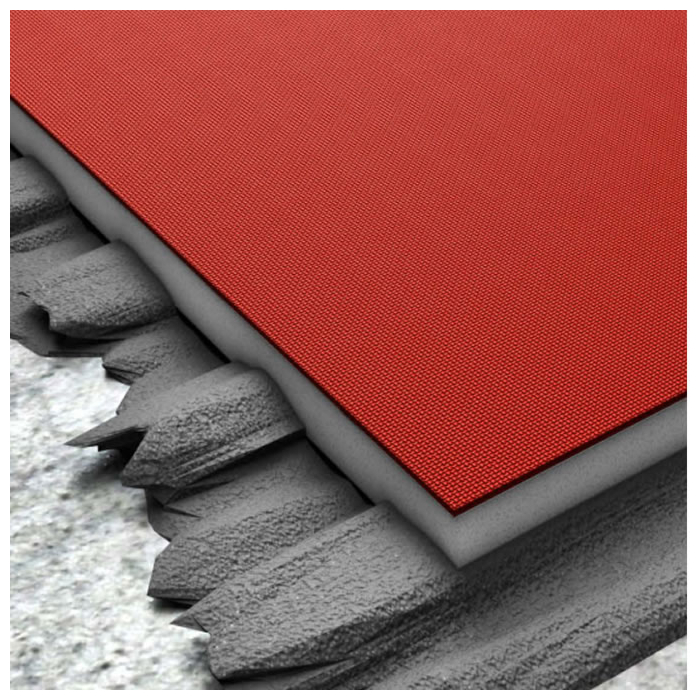

Ultralight has been engineered with a multi-layer construction method for maximal insulation properties and heat conductivity.

Its energy-saving insulation layer is enveloped between a top layer of synthetic fabric, onto which a heating system can be directly installed, an aluminium core which assists in an even and efficient distribution of heat, and a base layer of decoupling fleece.

FEATURES & BENEFITS

- The heat spreading aluminium layer improves comfort and reduces running costs by providing a 50 % more even heat spread. This enables the floor to achieve the same comfort temperature whilst using 12% less energy.

- PEF insulation layer reduces eUFH heat up times by up to 76 minutes, reduces energy used during eUFH heat up by 69% and reduces heat loss through floors by 5% in a typical house built in 1995, more in older houses, saving you up to 60p/m² a year by improving the floor insulation level.

- Decoupling fleece layer provides high performance protection against tiles cracking due to lateral subfloor movement in accordance with ANSI A118.12 standard.

- Warmup Ultralight is tested and rated for its acoustic performance by Intertek Building & Construction in accordance with ISO 10140-2, ISO 10140-3, ASTM E90 and ASTM E492 . Results obtained are tested values and were obtained by using the designated test methods in test chambers that satisfy the lab requirements specified in ISO 10140-5.

- Lightweight and durable. Ultralight weighs 1.15kg/m² making it much lighter and easier to carry than standard cement-based tile insulation and backer boards and is more robust due to the high strength composite design meaning it won’t break if dropped or bent.

- The lightweight composite design makes it easier to cut curves and complex shapes, compared withcement-based tile insulation and backer boards and will not dull knife blades.

- Ultralight will not crumple, dent or create dust when cutting or kneeling on the boards which means no dust to clean or breathe in during installation.

- Ultralight achieved Heavy Commercial rating when used with large format tiles (600 mm x 600 mm) and Light Commercial rating when used with standard tiles (300 mm x 300 mm), in accordance with ASTM-C627 (Robinson Test).

Available in packs of 6, 16 or as a pallet of 170 packs
