Warmup Total-16 Low Profile System Moulded Straight Board
SKU
WHS-TOTAL16-BOARD
£49.20
£41.00
Warmup Total-16 Low Profile System Moulded Straight Board
Warmup Total-16 Low Profile System Moulded Straight Board including Aluminium Plate for Pex-A 12mm pipes.
600 x 1200 x 16mm
Warmup Code: WHS-TOTAL16-BOARD

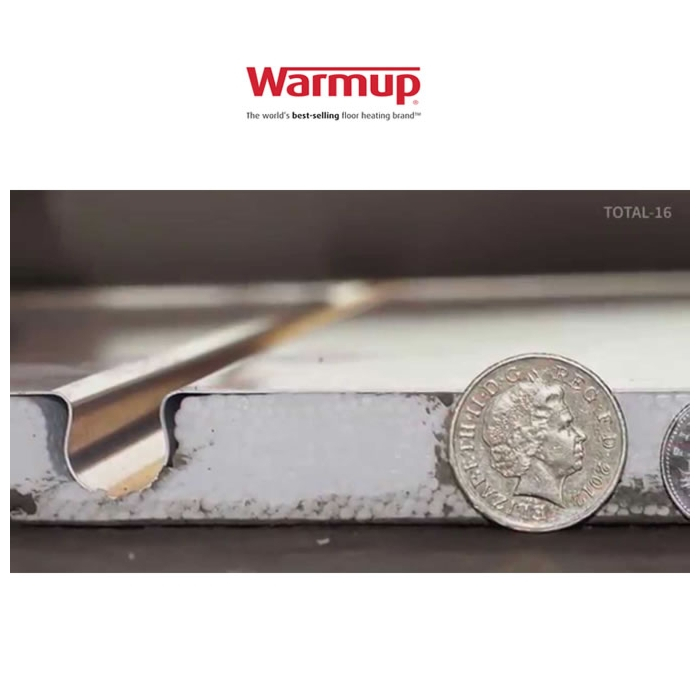

The Warmup Total-16 boards are made of high density EPS with a 400Kpa compressive strength; providing extremely high resistance for short and long term loads.
The straight boards come with aluminium heat diffusion plates as an integral part of the board.
Return boards and the multifeed boards, which are used to transit pipes to other heating circuits from the manifold, do not have the aluminium heat diffusion plates
The Warmup Total-16 System is a lightweight, heavy-duty floor heating system that requires no screed and due to its thin depth of only 16mm is recommended for renovations where ceiling heights are fixed.
Total-16 is ideal for new-build and refurbishment projects where floor height is at a premium and installation speed is of the essence.
Warmup’s Total-16 system is installed onto either concrete or wooden subfloors and can be used under almost any floor finish, including: solid and engineered wood, ceramic or stone floors as well as vinyl and carpet.
The Total-16 system is comprised of insulated straight boards, with integrated aluminium plates, multi-feed boards and return boards. These boards are made of a high density EPS and can support 40 tonnes/m².
It is designed to be used with Warmup’s 12mm PEX-A pipe, which is inserted into the insulation boards with integrated aluminium heat diffuser plates for greater radiant heat conductivity. The PEX-A pipe is at the heart of our system due to its strong, flexible and kink-resistant nature and also comes with Warmups best warranties and guarantees.
Key Benefits:
- Total height 16mm - Minimal impact on floor levels, ideal for retrofitting and for installations on upper floors.
- Made using EPS and Aluminium spreader plates - Combination of insulation and spreader plates cuts heat-up times.
- Output up to 111W/m² - Can be used for sole-source heating.
- Ultra low-weight boards - Easy to fit and handle for rapid installation.
- Modular design - Fits rooms of almost any size and shape.
- Suitable for most floor finishes, including tiles.
Please see our other listings for other Warmup Total-16 Products.
600 x 1200 x 16mm
Warmup Code: WHS-TOTAL16-BOARD
The Warmup Total-16 boards are made of high density EPS with a 400Kpa compressive strength; providing extremely high resistance for short and long term loads.
The straight boards come with aluminium heat diffusion plates as an integral part of the board.
Return boards and the multifeed boards, which are used to transit pipes to other heating circuits from the manifold, do not have the aluminium heat diffusion plates
The Warmup Total-16 System is a lightweight, heavy-duty floor heating system that requires no screed and due to its thin depth of only 16mm is recommended for renovations where ceiling heights are fixed.
Total-16 is ideal for new-build and refurbishment projects where floor height is at a premium and installation speed is of the essence.
Warmup’s Total-16 system is installed onto either concrete or wooden subfloors and can be used under almost any floor finish, including: solid and engineered wood, ceramic or stone floors as well as vinyl and carpet.
The Total-16 system is comprised of insulated straight boards, with integrated aluminium plates, multi-feed boards and return boards. These boards are made of a high density EPS and can support 40 tonnes/m².
It is designed to be used with Warmup’s 12mm PEX-A pipe, which is inserted into the insulation boards with integrated aluminium heat diffuser plates for greater radiant heat conductivity. The PEX-A pipe is at the heart of our system due to its strong, flexible and kink-resistant nature and also comes with Warmups best warranties and guarantees.
Key Benefits:
- Total height 16mm - Minimal impact on floor levels, ideal for retrofitting and for installations on upper floors.
- Made using EPS and Aluminium spreader plates - Combination of insulation and spreader plates cuts heat-up times.
- Output up to 111W/m² - Can be used for sole-source heating.
- Ultra low-weight boards - Easy to fit and handle for rapid installation.
- Modular design - Fits rooms of almost any size and shape.
- Suitable for most floor finishes, including tiles.
Please see our other listings for other Warmup Total-16 Products.
| SKU | WHS-TOTAL16-BOARD |
|---|---|
| Brand | Warmup |
