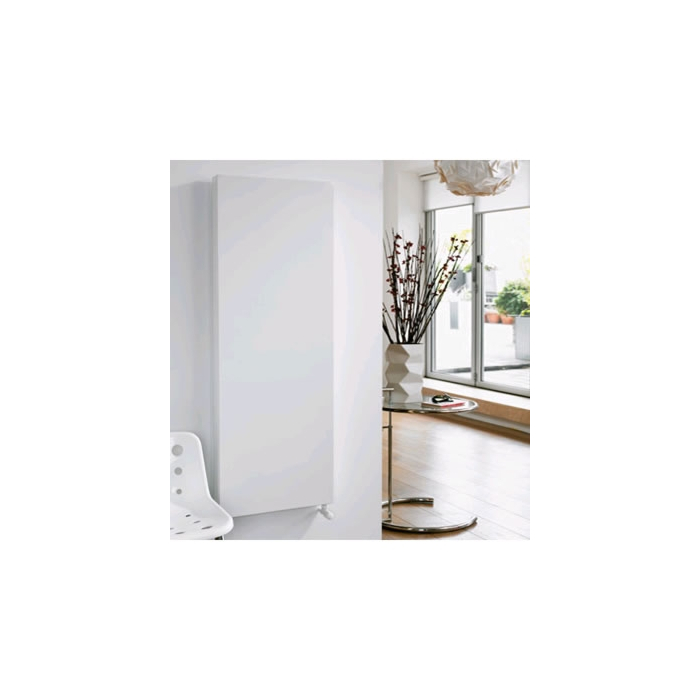

Ultraheat Planal Vertical VPH Single Panel Plus Radiators from Inspired Heating

Ultraheat Planal Vertical VPH radiators offer the ultimate modern statement for your room, Planal Vertical radiators provide a discrete, sophisticated new look and exciting, flexible way to make an impression while efficiently heating your room. The Ultraheat Planal radiator is a smooth flat panel radiator available in a wide selection of sizes as well as horizontal options - please see our other listings.

White RAL 9016
10 year guarantee

Radiator Depth: 71mm
Depth from Wall to Pipe Centres: 56/78mm
Depth from Wall to Face: 93/115mm
Delivered usually within 3-4 working days - dependant on weight.

Please note for every purchase that includes this item, it will incur a single £15 excl vat carriage charge. This will be added automatically at checkout.

Model	Height (mm)	Width (mm)	Watts 50 degrees	Btu's 50 degrees
12VPH200	1200	200	512	1748
12VPH300	1200	300	659	2250
12VPH400	1200	400	849	2899
12VPH500	1200	500	1033	3528
12VPH600	1200	600	1213	4142
12VPH700	1200	700	1323	4518
12VPH900	1200	900	1701	5809
14VPH200	1400	200	592	2022
14VPH400	1400	400	984	3360
14VPH500	1400	500	1198	4091
14VPH600	1400	600	1406	4801
14VPH700	1400	700	1610	5498
14VPH900	1400	900	2070	7069
16VPH200	1600	200	678	2315
16VPH300	1600	300	846	2889
16VPH400	1600	400	1088	3716
16VPH500	1600	500	1323	4518
16VPH600	1600	600	1554	5307
16VPH700	1600	700	1779	6075
16VPH900	1600	900	2287	7810
16VPH200	1600	200	678	2315
16VPH300	1600	300	846	2889
16VPH400	1600	400	1088	3716
16VPH500	1600	500	1323	4518
16VPH600	1600	600	1554	5307
16VPH700	1600	700	1779	6075
16VPH900	1600	900	2287	7810
18VPH200	1800	200	761	2599
18VPH300	1800	300	922	3149
18VPH400	1800	400	1187	4054
18VPH500	1800	500	1445	4935
18VPH600	1800	600	1697	5795
18VPH700	1800	700	1942	6632
18VPH900	1800	900	2497	8527
20VPH200	2000	200	846	2889
20VPH300	2000	300	996	3401
20VPH400	2000	400	1283	4381
20VPH500	2000	500	1561	5331
20VPH600	2000	600	1833	6261
20VPH700	2000	700	2099	7168
20VPH900	2000	900	2699	9217
