Trench Heating
Description / Trench Heating

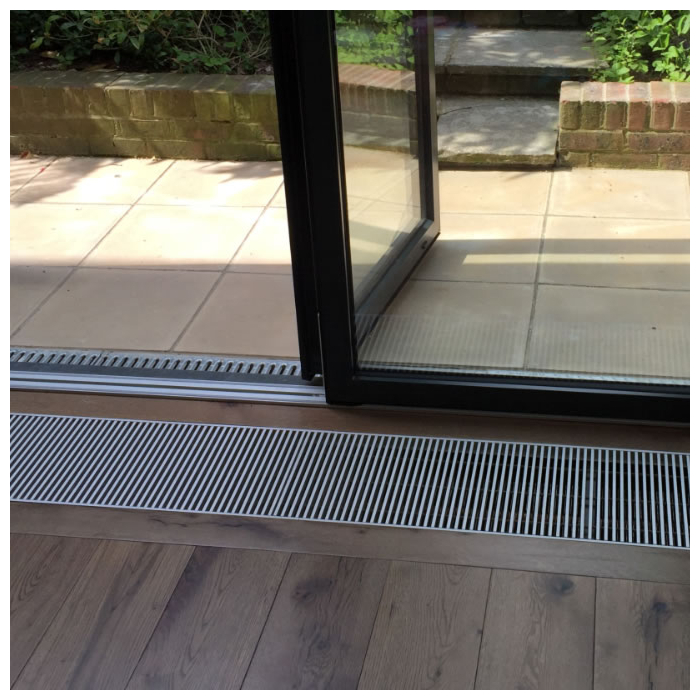

Trench Heating from Inspired Heating is the ultimate solution for a modern interior - designed to deliver powerful warmth while staying out of sight. Installed flush with the floor, trench heaters blend effortlessly into any space—perfect for minimalist aesthetics and open-plan living.
As the Inspired Trench Heating Made to Order range is bespoke, please allow 2-4 weeks for delivery. This range is considered a Special Order product line as it is made specifically to your requirements and as such is non-returnable.
Units Comprise of:
Casing. Manufactured from 1.2mm Zintec sheet steel with matt black interior. Comes with M6 levelling feet and heating element holder.
Heating Element. Manufactured from 1050 “O” natural finish aluminium finns mechanically bonded to 1/4 hard 22mm copper tubes.
Grille. Manufactured from 6063 T6 aluminium with tubular cores and finished in AA15 natural silver/grey satin anodised finish. (Grille frame to same finish).
Type 01 and Type 02 are available in 205mm and 130mm widths are 125mm deep
Type 03 and Type 04 are available in 305mm and 180mm widths are 185mm deep
Heat Emissions based on conditions of:
LTHW 82 - 71 Deg. C. (76.5 MWT)
Room Temp. 18 Deg. C.
Water Velocity 0.92 m/sec.
| SKU | Width | Depth | Length | Watts output | BTUs output | Element |
|---|---|---|---|---|---|---|
| Type 01 GTH 1000 | 205 | 125 | 1000 | 483 | 1647 | 22mm Copper tube with aluminium fins 50mm x 76mm x 2 side by side |
| Type 01 GTH 2000 | 205 | 125 | 2000 | 1173 | 4002 | 22mm Copper tube with aluminium fins 50mm x 76mm x 2 side by side |
| Type 02 GTH 1000 | 130 | 125 | 1000 | 301 | 1027 | Single 22mm Copper tube with aluminium fins 76mm x 76mm |
| Type 02 GTH 2000 | 130 | 125 | 2000 | 731 | 2494 | Single 22mm Copper tube with aluminium fins 76mm x 76mm |
| Type 03 GTH 1000 | 305 | 185 | 1000 | 708 | 2415 | 22mm Copper tube with aluminium fins 108mm x 108mm x 2 side by side |
| Type 03 GTH 2000 | 305 | 185 | 2000 | 1888 | 6441 | 22mm Copper tube with aluminium fins 108mm x 108mm x 2 side by side |
| Type 04 GTH 1000 | 180 | 185 | 1000 | 553 | 1886 | Single 22mm Copper tube with aluminium fins 108mm x 108mm |
| Type 04 GTH 2000 | 180 | 185 | 2000 | 1343 | 4582 | Single 22mm Copper tube with aluminium fins 108mm x 108mm |
Delivery: Approximately 2-4 weeks
Please Note - there are so many size options available within the range that we can't possibly list them all! So please get in touch if you can't see the size that you require. Email us your requirements for a quote.
