Description / TRC Ancona Made to Order 5 Column 600mm High Radiators in RAL Colours

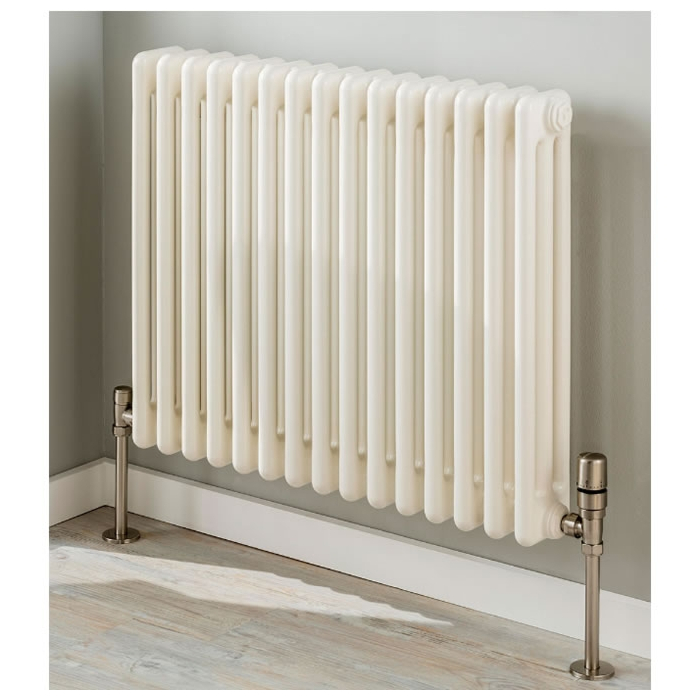

The Radiator Company Ancona Made to Order steel multi column radiator allows you maximum flexibility to create a radiator that matches your exact requirements. A vast array of over 500,000 sizes can be achieved by combining column depth, height and number of sections to achieve your desired output without compromising space. There is further flexibility due to the choice of mounting options available. The Ancona boasts the highest heat output of any multi column radiator sold in the UK. For radiators that are longer than 40 sections, a joinig key will be required on site.
All wall bracket options are included for free but please select your requirement from the drop down box above when placing your order.
Available in a wide choice of 188 RAL Colours as well as 30 special finishes. Please get in touch if there is a colour or finish you would like to purhcase but don't see on the list.
The Ancona radiator can be mounted in five different ways; for a contemporary look choose Welded Feet; for a classic look choose Cast Feet; or by selecting Wall Brackets you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.
As the Ancona Made to Order range is bespoke, please allow 4 weeks for delivery of RAL Colours / Classic Colours and 6 weeks for Bare Metal Lacquer. This range is considered a Special Order product line as it is made specifically to your requirements and as such is non-returnable. The Radiator Company Ancona is also available from stock in white finish for the more popular sizes with delivery usually being within 3-5 working days - Please see our separate listings.
There are so many size options within the Ancona Made to Order range that we can't possibly list them all! so please get in touch if you can't see the size that you require.
10 YEAR GUARANTEE
PLEASE NOTE: Widths include measurement for bushes, please note due to manufacturing tolerances widths shown may vary by +/-2mm
Model | No of Sects | Width (mm) | Watts 50 degrees | Btu's 50 degrees |
---|---|---|---|---|
ANCO5C60R/3 | 3 | 161 | 285 | 972 |
ANCO5C60R/8 | 8 | 386 | 760 | 2592 |
ANCO5C60R/10 | 10 | 476 | 950 | 3240 |
ANCO5C60R/13 | 13 | 611 | 1235 | 4212 |
ANCO5C60R/16 | 16 | 746 | 1520 | 5184 |
ANCO5C60R/20 | 20 | 926 | 1900 | 6480 |
More Information
Brand | The Radiator Company |
---|---|
SKU | ANCO5C60RAL |
Columns | 5 Column |
