TRC Ancona 4 Column 750mm High Radiators - Stock in White

SKU
ANCS4C75W
As low as £165.60 £138.00
TRC Ancona 4 Column 750mm High Radiators - Stock in White

The Radiator Company Ancona Stock is a best selling sectional multi column radiator range, incredibly versatile with literally hundreds of possible sizes in 2, 3 or 4 columns from 3 - 40 section, in a choice of 5 mounting options (slip on feet, cast feet or std, solid or stud wall brackets) all available from stock in white RAL 9016 for 3 - 5 working days delivery.

The Radiator Company Ancona is also available in Made To Order sizes as well as Special Finishes and RAL colours - Please see our separate listings.

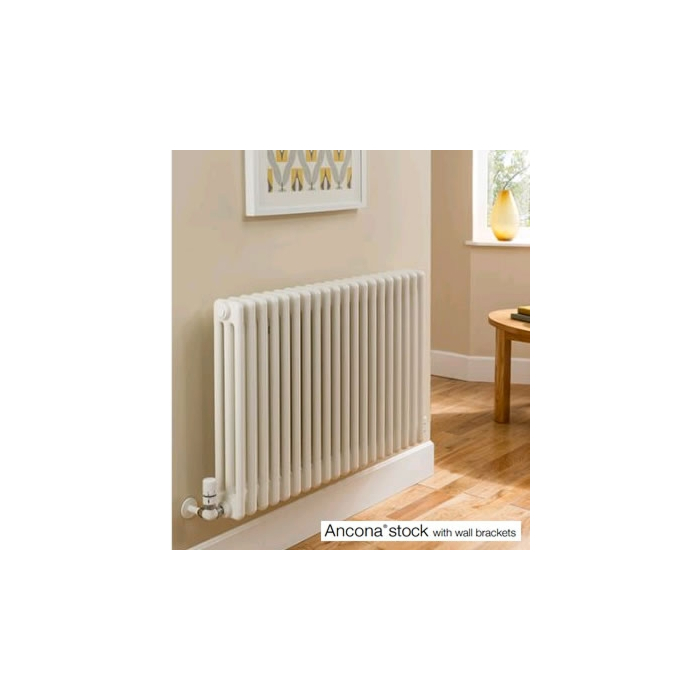

The Ancona stock radiator can be mounted in one of three ways; for a contemporary look choose Slip on Welded Feet; for a classic look choose Cast Feet; or by selecting Wall Brackets you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.

Pipe centres from wall (based on adjustable wall ties) = 102mm to 112mm
Wall Bracket Length: 211mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.
Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.

5 YEAR GUARANTEE

PLEASE NOTE: Widths include measurement for bushes, plesae note due to manufacturing tolerances widths shown may vary by +/-2mm

Model No of Sects Width (mm) Watts 50 degrees Btu's 50 degrees
ANCS4C75W 5 251 480 1638
ANCS4C75W 6 296 576 1965
ANCS4C75W 7 341 672 2293
ANCS4C75W 8 386 768 2620
ANCS4C75W 9 431 864 2948
ANCS4C75W 10 476 960 3276
ANCS4C75W 11 521 1056 3603
ANCS4C75W 12 566 1152 3931
ANCS4C75W 13 611 1248 4258
ANCS4C75W 14 656 1344 4586
ANCS4C75W 15 701 1440 4913
ANCS4C75W 16 746 1536 5241
NANCS4C75W 17 791 1632 5568
ANCS4C75W 18 836 1728 5896
ANCS4C75W 19 881 1824 6223
ANCS4C75W 20 926 1920 6551
ANCS4C75W 21 971 2016 6879
ANCS4C75W 22 1016 2112 7206
ANCS4C75W 23 1061 2208 7534
ANCS4C75W 24 1106 2304 7861
ANCS4C75W 25 1151 2400 8189
ANCS4C75W 26 1196 2496 8516
ANCS4C75W 27 1241 2592 8844
ANCS4C75W 28 1286 2688 9171
ANCS4C75W 29 1331 2784 9499
NANCS4C75W 30 1376 2880 9827
ANCS4C75W 31 1421 2976 10154
ANCS4C75W 32 1466 3072 10482
ANCS4C75W 33 1511 3168 10809
ANCS4C75W 34 1556 3264 11137
ANCS4C75W 35 1601 3360 11464
ANCS4C75W 36 1646 3456 11792
ANCS4C75W 37 1691 3552 12119
ANCS4C75W 38 1736 3648 12447
ANCS4C75W 39 1781 3744 12775
ANCS4C75W 40 1826 3840 13102
Full Features
SKU ANCS4C75W
Brand The Radiator Company
Columns 4 Column
