TRC Ancona 3 Column 500mm High Radiators - Stock in White

SKU
ANCS3C50W
As low as £86.40 £72.00
TRC Ancona 3 Column 500mm High Radiators - Stock in White

The Radiator Company Ancona Stock is a best selling sectional multi column radiator range, incredibly versatile with literally hundreds of possible sizes in 2, 3 or 4 columns from 3 - 40 section, in a choice of 5 mounting options (slip on feet, cast feet or std, solid or stud wall brackets) all available from stock in white RAL 9016 for 3 - 5 working days delivery.

The Radiator Company Ancona is also available in Made To Order sizes as well as Special Finishes and RAL colours - Please see our separate listings.

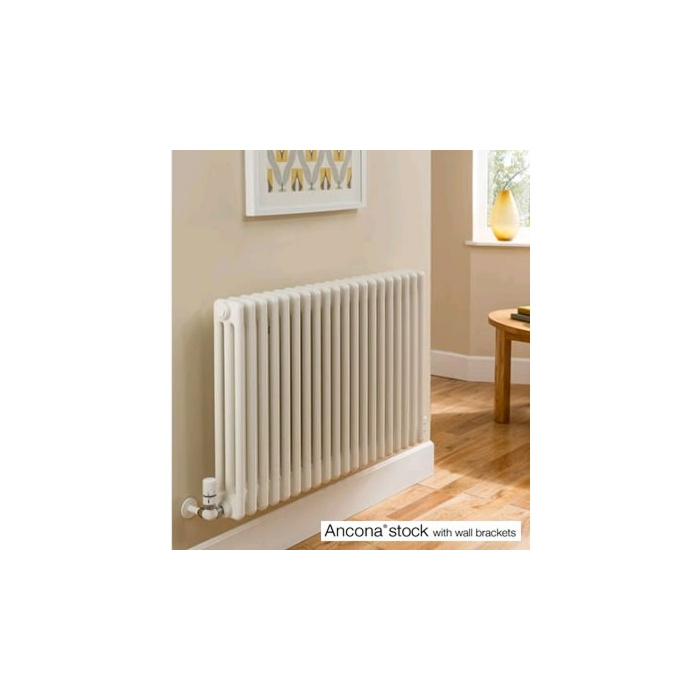

The Ancona stock radiator can be mounted in one of three ways; for a contemporary look choose Slip on Welded Feet; for a classic look choose Cast Feet; or by selecting Wall Brackets you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.

Pipe centres from wall (based on adjustable wall ties) = 82mm to 92mm
Wall Bracket Length: 192mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.
Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.

10 YEAR GUARANTEE

PLEASE NOTE: Widths include measurement for bushes, plesae note due to manufacturing tolerances widths shown may vary by +/-2mm.

Model No of Sects Width (mm) Watts 50 degrees Btu's 50 degrees
ANCS3C50W 3 161 153 522
ANCS3C50W 4 206 204 696
ANCS3C50W 5 251 255 870
ANCS3C50W 6 296 306 1044
ANCS3C50W 7 341 357 1218
ANCS3C50W 8 386 408 1392
ANCS3C50W 9 431 459 1566
ANCS3C50W 10 476 510 1740
ANCS3C50W 11 521 561 1914
ANCS3C50W 12 566 612 2088
ANCS3C50W 13 611 663 2262
ANCS3C50W 14 656 714 2436
ANCS3C50W 15 701 765 2610
ANCS3C50W 16 746 816 2784
ANCS3C50W 17 791 867 2958
ANCS3C50W 18 836 918 3132
ANCS3C50W 19 881 969 3306
ANCS3C50W 20 926 1020 3480
ANCS3C50W 21 971 1071 3654
ANCS3C50W 22 1016 1122 3828
ANCS3C50W 23 1061 1173 4002
ANCS3C50W 24 1106 1224 4176
ANCS3C50W 25 1151 1275 4350
ANCS3C50W 26 1196 1326 4524
ANCS3C50W 27 1241 1377 4698
ANCS3C50W 28 1286 1428 4872
ANCS3C50W 29 1331 1479 5046
ANCS3C50W 30 1376 1530 5220
ANCS3C50W 31 1421 1581 5394
ANCS3C50W 32 1466 1632 5568
ANCS3C50W 33 1511 1683 5742
ANCS3C50W 34 1556 1734 5916
ANCS3C50W 35 1601 1785 6090
ANCS3C50W 36 1646 1836 6264
ANCS3C50W 37 1691 1887 6438
ANCS3C50W 38 1736 1938 6612
ANCS3C50W 39 1781 1989 6786
ANCS3C50W 40 1826 2040 6960
Full Features
SKU ANCS3C50W
Brand The Radiator Company
Columns 3 Column
