TRC Ancona 2 Column 1800mm High Radiators - Stock in White
The Radiator Company Ancona Stock is a best selling sectional multi column radiator range, incredibly versatile with literally hundreds of possible sizes in 2, 3 or 4 columns from 3 - 40 section, in a choice of 5 mounting options (slip on feet, cast feet or std, solid or stud wall brackets) all available from stock in white RAL 9016 for 3 - 5 working days delivery. The Radiator Company Ancona is also available in Made To Order sizes as well as Special Finishes and RAL colours - Please see our separate listings.
The Ancona stock radiator can be mounted in one of three ways; for a contemporary look choose Slip on Welded Feet; for a classic look choose Cast Feet; or by selecting Wall Brackets you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.
Pipe centres, left to right = number of sections x 45mm plus 24mm (12mm each) for bushes plus valves.
Pipe centres from wall (based on adjustable wall ties) = 66mm to 76mm
Wall Bracket Length: 173mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.

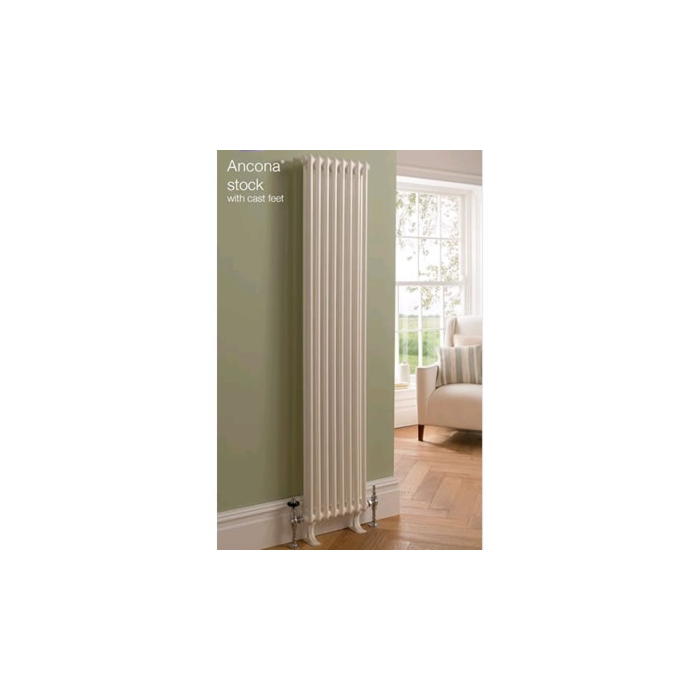

Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.
10 YEAR GUARANTEE
PLEASE NOTE: Lengths quoted have been calculated at 45mm per section plus an allowance of 24mm for bushes.
|Model||No of Sects||Width (mm)||Watts 50 degrees||Btu's 50 degrees|
|Brand||The Radiator Company|
