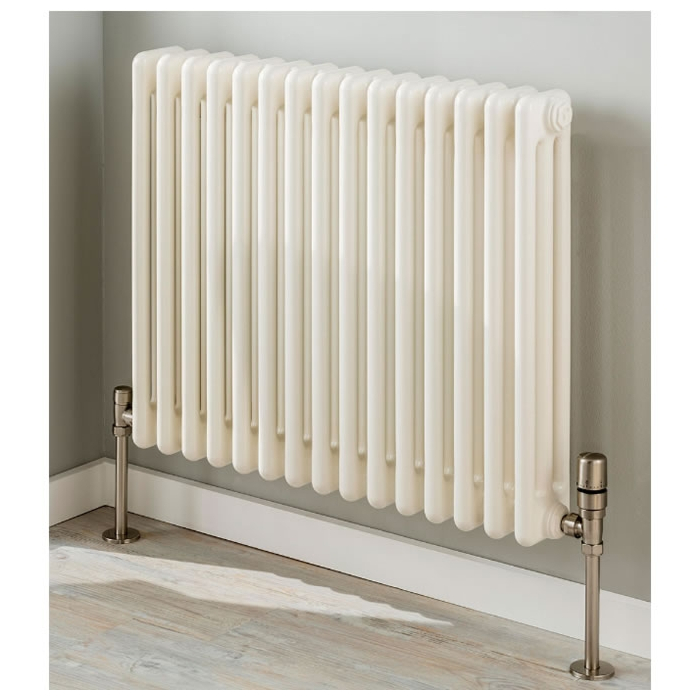

TRC Ancona Made to Order 3 Column 900mm High White Radiators

The Radiator Company Ancona Made to Order steel multi column radiator allows you maximum flexibility to create a radiator that matches your exact requirements. A vast array of over 500,000 sizes can be achieved by combining column depth, height and number of sections to achieve your desired output without compromising space. There is further flexibility due to the choice of mounting options available. The Ancona boasts the highest heat output of any multi column radiator sold in the UK. For radiators that are longer than 40 sections, a joining key will be required on site.

Finished in white RAL 9016.

The Ancona radiator has 5 mounting options (slip on feet, cast feet or std, solid or stud wall brackets) so you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.

As the Ancona Made to Order range is bespoke, please allow 4 weeks for delivery. This range is considered a Special Order product line as it is made specifically to your requirements and as such is non-returnable. The Radiator Company Ancona is also available from stock for the more popular sizes with delivery usually being within 3-5 working days as well as Special Finishes and RAL colours - Please see our separate listings.

There are so many size options within the Ancona Made to Order range that we can't possibly list them all! So please get in touch if you can't see the size that you require.

Pipe centres, left to right = number of sections x 45mm plus 24mm (12mm each) for bushes plus valves.
Pipe centres from wall (based on adjustable wall ties) = 80mm to 90mm
Wall Bracket Length: 192mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.
Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.

10 YEAR GUARANTEE

PLEASE NOTE: Lengths quoted have been calculated at 45mm per section plus an allowance of 24mm for bushes.

Model	No of Sects	Width (mm)	Watts 50 degrees	Btu's 50 degrees
ANCO3C90W/8	8	384	696	2376
ANCO3C90W/10	10	474	870	2970
ANCO3C90W/12	12	564	1044	3564
ANCO3C90W/14	14	654	1218	4158
ANCO3C90W/16	16	744	1392	4752
ANCO3C90W/18	18	834	1566	5346
ANCO3C90W/20	20	924	1740	5940
ANCO3C90W/22	22	1014	1914	6534
ANCO3C90W/24	24	1104	2088	7128
ANCO3C90W/26	26	1194	2262	7722
ANCO3C90W/28	28	1284	2436	8316
ANCO3C90W/30	30	1374	2610	8910
