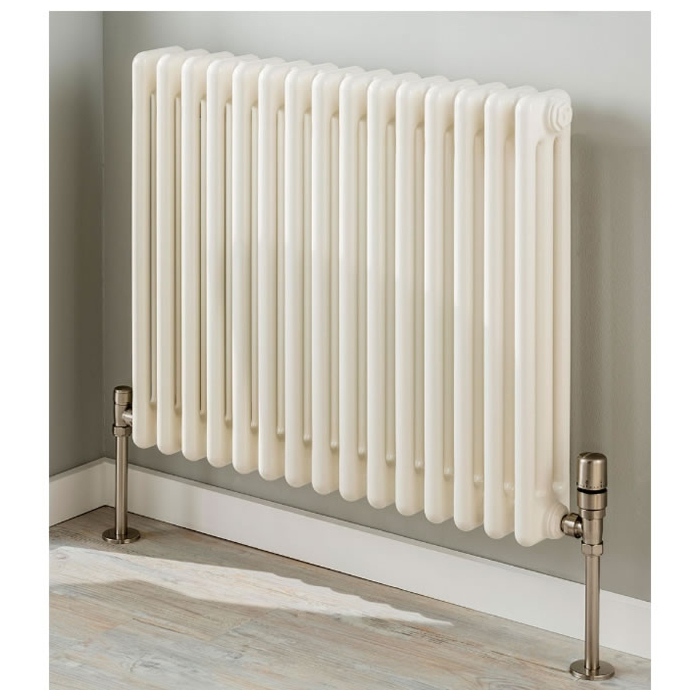

TRC Ancona Made to Order 3 Column 550mm High White Radiators

As low as £234.00 £195.00
TRC Ancona Made to Order 3 Column 550mm High White Radiators

The Radiator Company Ancona Made to Order steel multi column radiator allows you maximum flexibility to create a radiator that matches your exact requirements. A vast array of over 500,000 sizes can be achieved by combining column depth, height and number of sections to achieve your desired output without compromising space. There is further flexibility due to the choice of mounting options available. The Ancona boasts the highest heat output of any multi column radiator sold in the UK. For radiators that are longer than 40 sections, a joining key will be required on site.

Finished in white RAL 9016.

The Ancona radiator has 5 mounting options (slip on feet, cast feet or std, solid or stud wall brackets) so you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.

As the Ancona Made to Order range is bespoke, please allow 4 weeks for delivery. This range is considered a Special Order product line as it is made specifically to your requirements and as such is non-returnable. The Radiator Company Ancona is also available from stock for the more popular sizes with delivery usually being within 3-5 working days as well as Special Finishes and RAL colours - Please see our separate listings.

There are so many size options within the Ancona Made to Order range that we can't possibly list them all! So please get in touch if you can't see the size that you require.

Pipe centres, left to right = number of sections x 45mm plus 24mm (12mm each) for bushes plus valves.
Pipe centres from wall (based on adjustable wall ties) = 80mm to 90mm
Wall Bracket Length: 192mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.
Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.


PLEASE NOTE: Lengths quoted have been calculated at 45mm per section plus an allowance of 24mm for bushes.

Model No of Sects Width (mm) Watts 50 degrees Btu's 50 degrees
ANCO3C55W/10 10 474 550 1880
ANCO3C55W/12 12 564 660 2256
ANCO3C55W/14 14 654 770 2632
ANCO3C55W/16 16 744 880 3008
ANCO3C55W/18 18 834 990 3384
ANCO3C55W/20 20 924 1100 3760
ANCO3C55W/22 22 1014 1210 4136
ANCO3C55W/24 24 1104 1320 4512
ANCO3C55W/26 26 1194 1430 4888
ANCO3C55W/28 28 1284 1540 5264
ANCO3C55W/30 30 1374 1650 5640
ANCO3C55W/32 32 1464 1760 6016
ANCO3C55W/34 34 1554 1870 6392
ANCO3C55W/35 35 1599 1925 6580
ANCO3C55W/36 36 1644 1980 6768
ANCO3C55W/38 38 1734 2090 7144
ANCO3C55W/40 40 1824 2200 7520
Full Features
Brand The Radiator Company
Columns 3 Column
