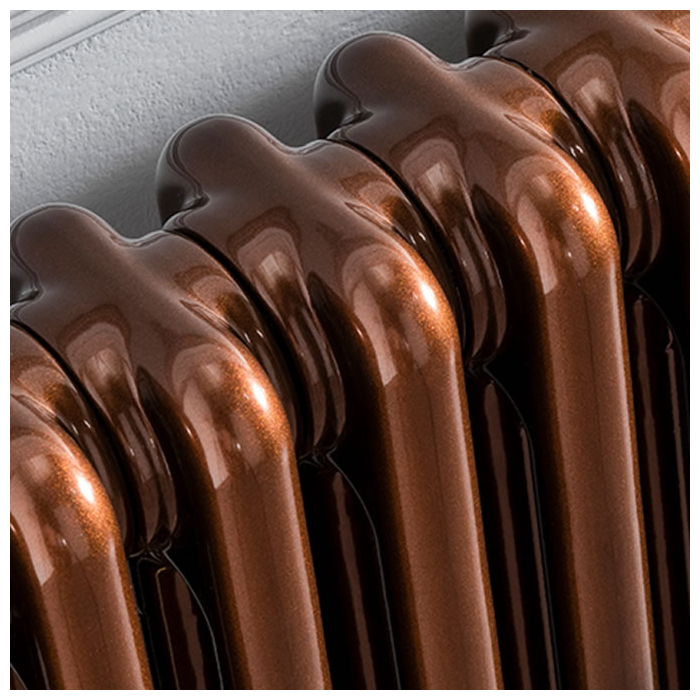

TRC Ancona Feature Finishes 4 Column Horizontal Radiators

The Ancona Feature Finishes range by The Radiator Company is one of our most popular sectional multi column radiator collections. Renowned for its flexibility, this range offers hundreds of size combinations across 2, 3, or 4 columns, with 3 to 40 sections available. Choose from three mounting styles to suit your space and aesthetic:

Slip-On Welded Feet – for a sleek, modern look
Cast Feet – for timeless, traditional charm
Standard Wall Brackets – for adjustable height and minimalist appeal

Available Heights: 300mm, 500mm, 600mm, and 750mm

Each Ancona radiator comes with wall ties included as standard, ensuring secure installation. Simply select your preferred mounting option above to complete your setup.

Please note these are a Special Order and are therefore non returnable

Up to 3 weeks for delivery

Pipe centres from wall (based on adjustable wall ties) = 102mm to 112mm
Wall Bracket Length: 192mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.
Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.

10 YEAR GUARANTEE

PLEASE NOTE: Widths include measurement for bushes, plesae note due to manufacturing tolerances widths shown may vary by +/-2mm

Height (mm)	No of Sects	Width (mm)	Watts 50 degrees	Btu's 50 degrees
300	3	161	126	430
300	4	206	168	573
300	5	251	210	717
300	6	296	252	860
300	7	341	294	1003
300	8	386	336	1146
300	9	431	378	1290
300	10	476	420	1433
300	11	521	462	1576
300	12	566	504	1720
300	13	611	546	1863
300	14	656	588	2006
300	15	701	630	2150
300	16	746	672	2293
300	17	791	714	2436
300	18	836	756	2579
300	19	881	798	2723
300	20	926	840	2866
300	21	971	882	3009
300	22	1016	924	3153
300	23	1061	966	3296
300	24	1106	1008	3439
300	25	1151	1050	3583
300	26	1196	1092	3726
300	27	1241	1134	3869
300	28	1286	1176	4013
300	29	1331	1218	4156
300	30	1376	1260	4299
300	31	1421	1302	4442
300	32	1466	1344	4586
300	33	1511	1386	4729
300	34	1556	1428	4872
300	35	1601	1470	5016
300	36	1646	1512	5159
300	37	1691	1554	5302
300	38	1736	1596	5446
300	39	1781	1638	5589
300	40	1826	1680	5732
500	3	161	198	676
500	4	206	264	901
500	5	251	330	1126
500	6	296	396	1351
500	7	341	462	1576
500	8	386	528	1802
500	9	431	594	2027
500	10	476	660	2252
500	11	521	726	2477
500	12	566	792	2702
500	13	611	858	2927
500	14	656	924	3153
500	15	701	990	3378
500	16	746	1056	3603
500	17	791	1122	3828
500	18	836	1188	4053
500	19	881	1254	4279
500	20	926	1320	4504
500	21	971	1386	4729
500	22	1016	1452	4954
500	23	1061	1518	5179
500	24	1106	1584	5405
500	25	1151	1650	5630
500	26	1196	1716	5855
500	27	1241	1782	6080
500	28	1286	1848	6306
500	29	1331	1914	6531
500	30	1376	1980	6756
500	31	1421	2046	6981
500	32	1466	2112	7206
500	33	1511	2178	7431
500	34	1556	2244	7657
500	35	1601	2310	7882
500	36	1646	2376	8107
500	37	1691	2442	8332
500	38	1736	2508	8557
500	39	1781	2574	8782
500	40	1826	2640	9008
600	3	161	237	809
600	4	206	316	1078
600	5	251	395	1348
600	6	296	474	1617
600	7	341	563	1887
600	8	386	632	2156
600	9	431	711	2426
600	10	476	790	2695
600	11	521	869	2965
600	12	566	948	3235
600	13	611	1027	3504
600	14	656	1106	3774
600	15	701	1185	4043
600	16	746	1264	4313
600	17	791	1343	4582
600	18	836	1422	4852
600	19	881	1501	5121
600	20	926	1580	5391
600	21	971	1659	5661
600	22	1016	1738	5930
600	23	1061	1817	6200
600	24	1106	1896	6469
600	25	1151	1975	6739
600	26	1196	2054	7008
600	27	1241	2133	7278
600	28	1286	2212	7547
600	29	1331	2291	7817
600	30	1376	2370	8086
600	31	1421	2449	8356
600	32	1466	2528	8626
600	33	1511	2607	8895
600	34	1556	2686	9165
600	35	1601	2765	9434
600	36	1646	2844	9704
600	37	1691	2923	9973
600	38	1736	3002	10243
600	39	1781	3081	10512
600	40	1826	3160	10782
750	3	161	288	983
750	4	206	384	1310
750	5	251	480	1638
750	6	296	576	1965
750	7	341	672	2293
750	8	386	768	2620
750	9	431	864	2948
750	10	476	960	3276
750	11	521	1056	3603
750	12	566	1152	3931
750	13	611	1248	4258
750	14	656	1344	4586
750	15	701	1440	4913
750	16	746	1536	5241
750	17	791	1632	5568
750	18	836	1728	5896
750	19	881	1824	6223
750	20	926	1920	6551
750	21	971	2016	6879
750	22	1016	2112	7206
750	23	1061	2208	7534
750	24	1106	2304	7861
750	25	1151	2400	8189
750	26	1196	2496	8516
750	27	1241	2592	8844
750	28	1286	2688	9171
750	29	1331	2784	9499
750	30	1376	2880	9827
750	31	1421	2976	10154
750	32	1466	3072	10482
750	33	1511	3168	10809
750	34	1556	3264	11137
750	35	1601	3360	11464
750	36	1646	3456	11792
750	37	1691	3552	12119
750	38	1736	3648	12447
750	39	1781	3744	12775
750	40	1826	3840	13102
