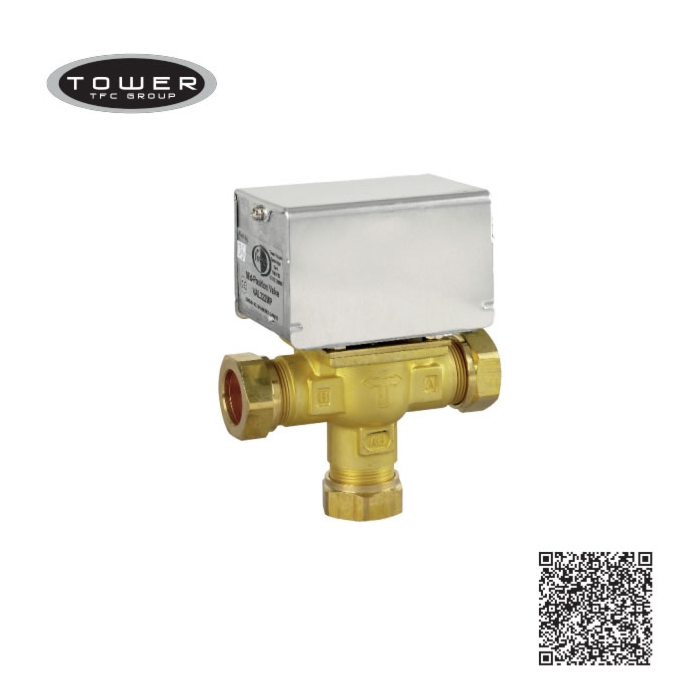

Tower 28mm Mid-Position Valve

Tower Ref: VAL328MP

Tower 3-port motorised valves are designed to provide control for heating and hot water.
There are two versions, for either 22mm or 28mm pipework.
Compression fittings are supplied.
These valves have a replaceable actuator head, which can be exchanged without needing to draindown the system.

Technical specification:
- Synchronous motor drive / spring return action.
- 1m 5-core flex.
- Industry standard flex colours: white; blue; grey; orange; green/yellow
- Auxiliary switch
- Switch rating 3A resistive
- Integrated manual lever for commissioning purposes.
- Supply 230V 50Hz / power consumption 6W
- Operating temperature range: +5 to 880C
- Maximum differential pressure 1 Bar
- Maximum static pressure 10.0 Bar
- Maximum fluid temperature 1000C


- 3 Year Warranty
