The Radiator Company Ancona Bare Metal Lacquer Stock 4 Column Radiator
The Radiator Company Ancona Bare Metal Lacquer Stock 4 Column Radiators
The Radiator Company Ancona Bare Metal Lacquer Stock Radiator range offers a choice of 2, 3 or 4 columns in this outstanding "on trend" finish with delivery usually within 3 - 5 working days.
This industrial bare metal finish is hand finished so each radiator is unique. As you would expect variations in colour, welding and burnishing marks vary from one section to another and add to the idiosyncrasy of each radiator. Once sections are hand burnished to give a smooth surface, a clear gloss lacquer is applied, protecting the bare metal and enhancing their irregular nature and individuality.
Supplied as standard with universal wall brackets included in the radiator price or opt for a Slip on Welded Feet Kit - please select your required mounting option above.
Pipe centres from wall = 93mm
Slip On Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.
10 YEAR GUARANTEE
PLEASE NOTE: Widths include measurement for bushes, plesae note due to manufacturing tolerances widths shown may vary by +/-2mm

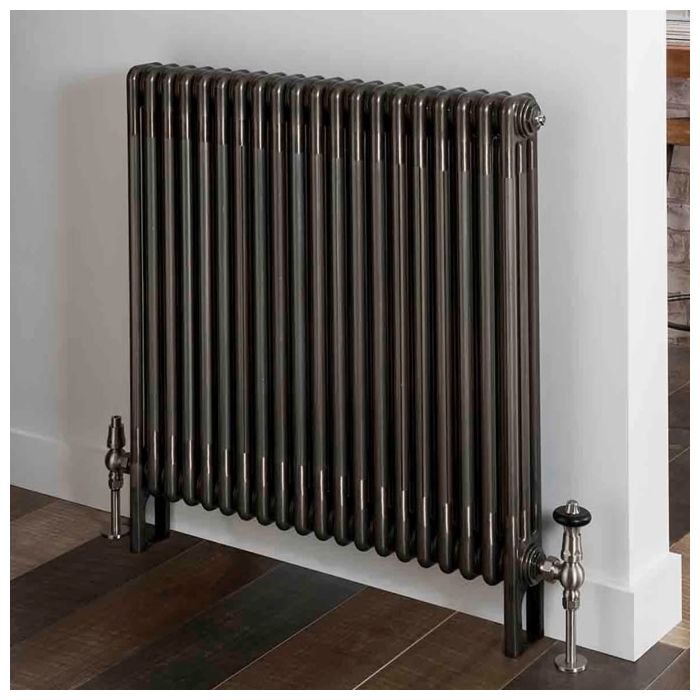

Supplied raditator will be 4 Column unlike picture which is a 3 Column radiator.
Model | Height (mm) | Width (mm) | No of Sects | Watts 50 degrees | Btu's 50 degrees |
---|---|---|---|---|---|
ANCS4C60X3L | 600 | 161 | 3 | 237 | 809 |
ANCS4C60X4L | 600 | 206 | 4 | 316 | 1078 |
ANCS4C60X5L | 600 | 251 | 5 | 395 | 1348 |
ANCS4C60X6L | 600 | 296 | 6 | 474 | 1617 |
ANCS4C60X7L | 600 | 341 | 7 | 553 | 1887 |
ANCS4C60X8L | 600 | 386 | 8 | 632 | 2156 |
ANCS4C60X9L | 600 | 431 | 9 | 711 | 2426 |
ANCS4C60X10L | 600 | 476 | 10 | 790 | 2695 |
ANCS4C60X11L | 600 | 521 | 11 | 869 | 2965 |
ANCS4C60X12L | 600 | 566 | 12 | 948 | 3235 |
ANCO4C60X13L | 600 | 611 | 13 | 1027 | 3504 |
ANCS4C60X14L | 600 | 656 | 14 | 1106 | 3774 |
ANCS4C60X15L | 600 | 701 | 15 | 1185 | 4043 |
ANCS4C60X16L | 600 | 746 | 16 | 1264 | 4313 |
ANCS4C60X17L | 600 | 791 | 17 | 1343 | 4582 |
ANCO4C60X18L | 600 | 836 | 18 | 1422 | 4852 |
ANCS4C60X19L | 600 | 881 | 19 | 1501 | 5121 |
ANCS4C60X20L | 600 | 926 | 20 | 1580 | 5391 |
ANCS4C60X21L | 600 | 971 | 21 | 1659 | 5661 |
ANCO4C60X22L | 600 | 1016 | 22 | 1738 | 5930 |
ANCO4C60X23L | 600 | 1061 | 23 | 1817 | 6200 |
ANCS4C60X24L | 600 | 1106 | 24 | 1896 | 6469 |
ANCS4C60X25L | 600 | 1151 | 25 | 1975 | 6739 |
ANCO4C60X26L | 600 | 1196 | 26 | 2054 | 7008 |
ANCS4C60X27L | 600 | 1241 | 27 | 2133 | 7278 |
ANCS4C60X28L | 600 | 1286 | 28 | 2212 | 7547 |
ANCS4C60X29L | 600 | 1331 | 29 | 2291 | 7817 |
ANCS4C60X30L | 600 | 1376 | 30 | 2370 | 8086 |
ANCS4C60X31L | 600 | 1421 | 31 | 2449 | 8356 |
ANCS4C60X32L | 600 | 1466 | 32 | 2528 | 8626 |
ANCS4C60X33L | 600 | 1511 | 33 | 2607 | 8895 |
ANCS4C60X34L | 600 | 1556 | 34 | 2686 | 9165 |
ANCS4C60X35L | 600 | 1601 | 35 | 2765 | 9434 |
ANCS4C60X36L | 600 | 1646 | 36 | 2844 | 9704 |
ANCS4C60X37L | 600 | 1691 | 37 | 2923 | 9973 |
ANCS4C60X38L | 600 | 1736 | 38 | 3002 | 10243 |
ANCS4C60X39L | 600 | 1781 | 39 | 3081 | 10512 |
ANCS4C60X40L | 600 | 1826 | 40 | 3160 | 10782 |
Brand | The Radiator Company |
---|---|
SKU | ancona 4 col lacquer |
Columns | 4 Column |
