TRC Ancona Made to Order 5 Column 400mm High White Radiators

SKU
ANCO5C40W
As low as £124.80 £104.00

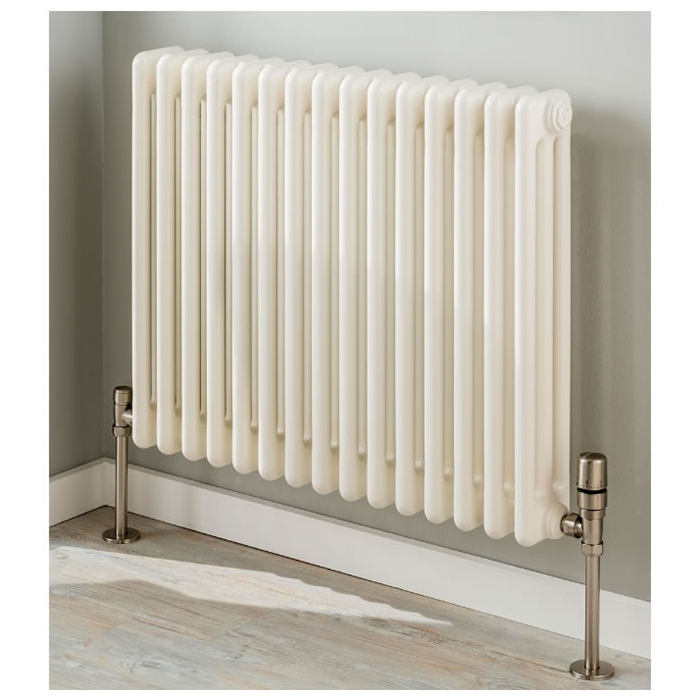

TRC Ancona Made to Order 5 Column 400mm High White Radiators

The Radiator Company Ancona Made to Order steel multi column radiator allows you maximum flexibility to create a radiator that matches your exact requirements. A vast array of over 500,000 sizes can be achieved by combining column depth, height and number of sections to achieve your desired output without compromising space. There is further flexibility due to the choice of mounting options available. The Ancona boasts the highest heat output of any multi column radiator sold in the UK. For radiators that are longer than 40 sections, a joining key will be required on site.

Finished in white RAL 9016.

The Ancona radiator has 5 mounting options (slip on feet, cast feet or std, solid or stud wall brackets) so you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.

As the Ancona Made to Order range is bespoke, please allow 4 weeks for delivery. This range is considered a Special Order product line as it is made specifically to your requirements and as such is non-returnable. The Radiator Company Ancona is also available from stock for the more popular sizes with delivery usually being within 3-5 working days as well as Special Finishes and RAL colours - Please see our separate listings.

There are so many size options within the Ancona Made to Order range that we can't possibly list them all! So please get in touch if you can't see the size that you require.

Pipe centres, left to right = number of sections x 45mm plus 24mm (13mm each) for bushes plus valves.
Pipe centres from wall (based on adjustable wall ties) = 120mm to 130mm
Wall Bracket Length: 230mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.
Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.

10 YEAR GUARANTEE

PLEASE NOTE: Widths include measurement for bushes, please note due to manufacturing tolerances widths shown may vary by +/-2mm

Model No of Sects Width (mm) Watts 50 degrees Btu's 50 degrees
ANCO5C40W/12 12 566 792 2700
ANCO5C40W/14 14 656 924 3150
ANCO5C40W/16 16 746 1056 3600
ANCO5C40W/18 18 836 1188 4050
ANCO5C40W/20 20 926 1320 4500
ANCO5C40W/22 22 1016 1452 4950
ANCO5C40W/24 24 1106 1584 5400
ANCO5C40W/26 26 1196 1716 5850
ANCO5C40W/28 28 1286 1848 6300
ANCO5C40W/30 30 1376 1980 6750
ANCO5C40W/32 32 1466 2112 7200
ANCO5C40W/34 34 1556 2244 7650
ANCO5C40W/36 36 1646 2376 8100
ANCO5C40W/38 38 1736 2508 8550
ANCO5C40W/40 40 1826 2640 9000
Full Features
SKU ANCO5C40W
Brand The Radiator Company
Columns 5 Column
