TRC Ancona Made to Order 4 Column 400mm High White Radiators

As low as £319.20 £266.00
TRC Ancona Made to Order 4 Column 400mm High White Radiators

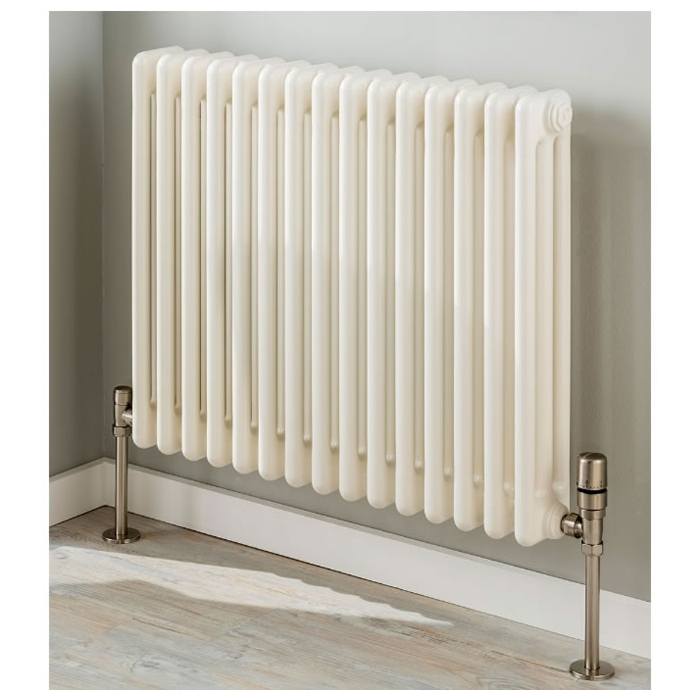

The Radiator Company Ancona Made to Order steel multi column radiator allows you maximum flexibility to create a radiator that matches your exact requirements. A vast array of over 500,000 sizes can be achieved by combining column depth, height and number of sections to achieve your desired output without compromising space. There is further flexibility due to the choice of mounting options available. The Ancona boasts the highest heat output of any multi column radiator sold in the UK. For radiators that are longer than 40 sections, a joining key will be required on site.

Finished in white RAL 9016.

The Ancona radiator has 5 mounting options (slip on feet, cast feet or std, solid or stud wall brackets) so you can position your steel multi column at any height - please select your required mounting option above. Wall Ties are included in the price and supplied as standard for all orders.

As the Ancona Made to Order range is bespoke, please allow 4 weeks for delivery. This range is considered a Special Order product line as it is made specifically to your requirements and as such is non-returnable. The Radiator Company Ancona is also available from stock for the more popular sizes with delivery usually being within 3-5 working days as well as Special Finishes and RAL colours - Please see our separate listings.

There are so many size options within the Ancona Made to Order range that we can't possibly list them all! So please get in touch if you can't see the size that you require.

Pipe centres, left to right = number of sections x 45mm plus 24mm (12mm each) for bushes plus valves.
Pipe centres from wall (based on adjustable wall ties) = 100mm to 110mm
Wall Bracket Length: 211mm
Wall Ties adjust from 32mm - 42mm
Slip On Feet add an additional 100mm to the height of the radiator.
Cast Feet add an additional 100mm to the height of the radiator.
It is recommended when using Wall Brackets that a minimum of 100mm floor clearance is allowed.


PLEASE NOTE: Lengths quoted have been calculated at 45mm per section plus an allowance of 24mm for bushes.

Radiators longer than 40 sections will need to be joined on site using a joining tool that The Radiator Company call a Nippling Tool. Please see link below to purchase this tool as well as your radiator if purchasing a radiator longer than 40 sections.

Model No of Sects Width (mm) Watts 50 degrees Btu's 50 degrees
ANCO4C40W/12 12 564 648 2208
ANCO4C40W/14 14 654 756 2576
ANCO4C40W/16 16 744 864 2944
ANCO4C40W/18 18 834 972 3312
ANCO4C40W/20 20 924 1080 3680
ANCO4C40W/22 22 1014 1188 4048
ANCO4C40W/24 24 1104 1296 4416
ANCO4C40W/26 26 1194 1404 4784
ANCO4C40W/28 28 1284 1512 5152
ANCO4C40W/30 30 1374 1620 5520
ANCO4C40W/32 32 1464 1728 5888
ANCO4C40W/34 34 1554 1836 6256
ANCO4C40W/36 36 1644 1944 6624
ANCO4C40W/38 38 1734 2052 6992
ANCO4C40W/40 40 1824 2160 7360
ANCO4C40W/50 50 2274 2700 9200
ANCO4C40W/53 53 2409 2862 9752
Full Features
Brand The Radiator Company
Columns 4 Column
