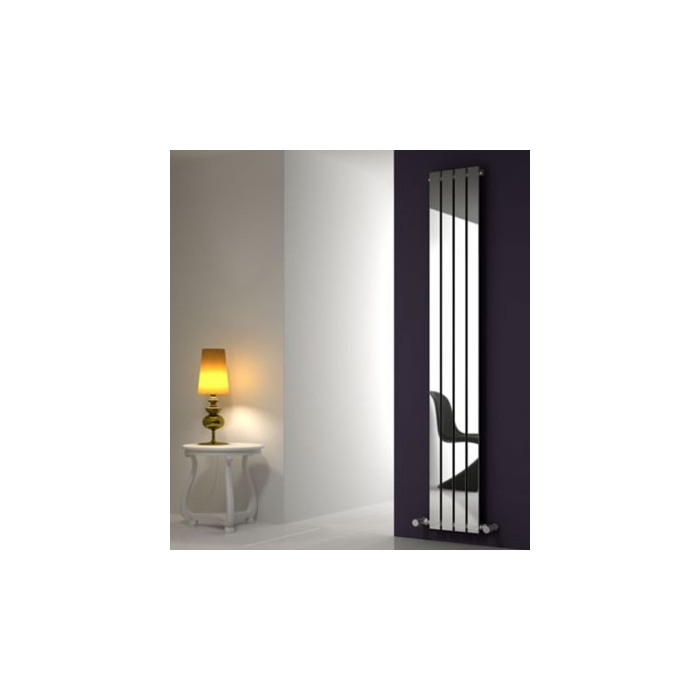

Reina Osimo Chrome Radiators

Reina Osimo Chrome Radiator is an affordable designer radiator that oozes quality. The Reina Osimo Chrome Radiator is available in two different sizes. The Osimo is also available in Black finish.
Wall to Pipe Centres is 61-76mm
Depth from Wall to Front of Rail: 105-120mm
Supplied with brackets, air and blanking vent.
Made from superior quality mild steel with high quality welding.
5 year manufacturers guarantee.
Manufactured in Europe to EN442 standards.
Delivered usually 1-2 working days

Model Reference	Height (mm)	Width (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
RND-OSM2918	1800	290	2602	763	1680	493
RND-OSM4318	1800	430	3780	1109	2440	716
RND-OSM5718	1800	570	5027	1474	3245	952

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs. All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
