Reina Nevah Horizontal Radiators in RAL Colour Finishes

Reina Nevah Horizontal Radiators in RAL Colour Finishes.

Nevah Radiators are available in a choice of 40 exciting RAL Colours. All finishes are powder coated and available within 7 working days.

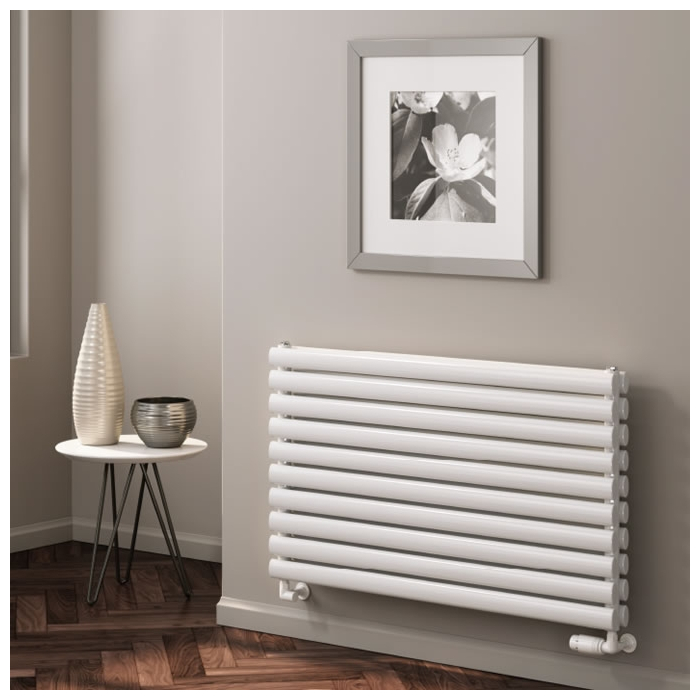

The Reina Nevah Horizontal Radiator is a contemporary modern tubular radiator similar to the Reina Neva radiator but has the tubes running horizontally rather than vertically. The Nevah is backed by a manufacturers 5 year guarantee.

The Reina Nevah Horizontal Radiator range includes single and double panel options and a wide variety of sizes. Please see separate listing for the Reina Nevah White and Anthracite Radiators.

Please note the 295mm height is not available as a dual fuel or electric only option

Supplied with brackets, air and blanking vent.
Made from superior quality mild steel with high quality welding.
5 year manufacturers guarantee.
Delivered usually 1-2 working days
Please note; Reina Nevah RAL Coloured radiators are made to order and as such are non-returnable unless faulty.

Model Reference	Height (mm)	Width (mm)	Tube Qty	Wall Distance (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
RND-NVH210S	295	1000	5	88	1792	526	1157	340
RND-NVH212S	295	1200	5	88	2110	619	1362	400
RND-NVH214S	295	1400	5	88	2441	716	1576	462
RND-NVH506S	590	600	10	88	2579	756	1665	488
RND-NVH508S	590	800	10	88	3036	890	1960	575
RND-NVH510S	590	1000	10	88	3578	1049	2310	677
RND-NVH512S	590	1200	10	88	4216	1236	2722	798
RND-NVH514S	590	1400	10	88	4920	1443	3176	932
RND-NVH210D	295	1000	10	103	2796	820	1805	529
RND-NVH212D	295	1200	10	103	3292	965	2125	623
RND-NVH214D	295	1400	10	103	3807	1116	2458	720
RND-NVH506D	590	600	20	103	4023	1180	2597	762
RND-NVH508D	590	800	20	103	4737	1389	3058	897
RND-NVH510D	590	1000	20	103	5583	1637	3604	1057
RND-NVH512D	590	1200	20	103	6577	1929	4246	1245
RND-NVH514D	590	1400	20	103	7674	2250	4954	1452

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs (British Thermal Units). All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
