Reina Neva Vertical Single Radiators in RAL Colour Finishes

Reina Neva Vertical Single Radiator in RAL Colour Finishes

The Reina Neva Radiator is now available in a choice of 40 exciting RAL Colours. All finishes are powder coated and available within 7 working days.

It is an ideal choice to create a contemporary feel at an outstanding price. The Reina Neva Designer radiator has a sleek and clean style that will enhance any room.

Also available for next working day delivery in White, Anthracite and Chrome finishes, as well as Single and Double options and Horizontal and Vertical ranges - there's a Reina Neva model that is suitable for every installation.

The Reina Neva Vertical can also be mounted horizontally. A different set of wall mounting brackets will be required to install horizontally and these must be purchased with the radiator by selecting the 'Horizontal' option from the drop down box above.

Wall to Pipe Centres is 65mm
Depth from Wall to Front of Radiator: 103mm

Supplied with brackets, air and blanking vent.
Made from superior quality mild steel with high quality welding.

5 year manufacturers guarantee.

PLEASE ALLOW AT LEAST 7 WORKING DAYS FOR DELIVERY.

Manufactured in Europe to EN442 standards.

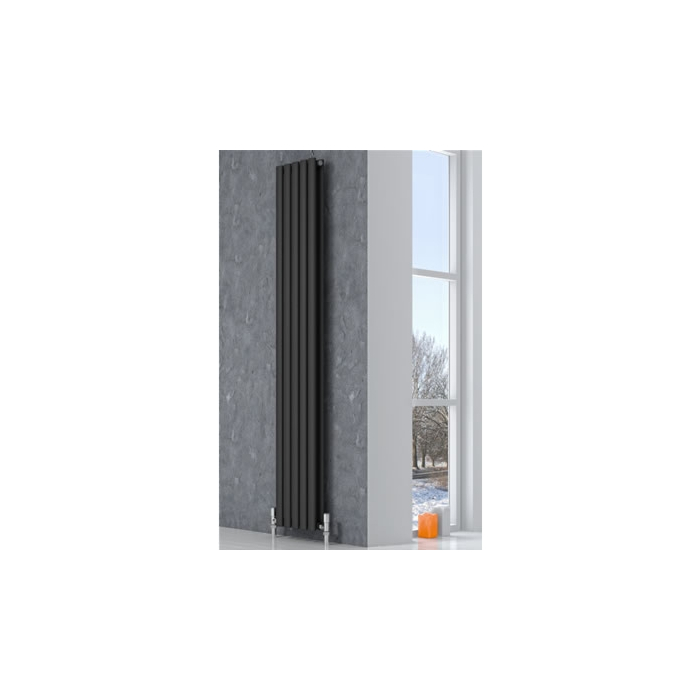

PLEASE NOTE: SUPPLIED NEVA WILL BE A SINGLE MODEL UNLIKE ILLUSTRATION

Please note; Reina Neva RAL Coloured radiators are made to order and as such are non-returnable unless faulty.

Model	Height (mm)	Width (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
RND-NV2315	1500	236	2265	664	1462	429
RND-NV2915	1500	295	2816	826	1818	533
RND-NV3515	1500	354	3380	991	2182	640
RND-NV4115	1500	413	3944	1157	2546	747
RND-NV4715	1500	472	4508	1322	2910	853
RND-NV5315	1500	531	5070	1487	3273	960
RND-NV2318	1800	236	2717	797	1754	514
RND-NV2918	1800	295	3380	991	2182	640
RND-NV3518	1800	354	4055	1189	2618	768
RND-NV4118	1800	413	4732	1388	3055	896
RND-NV4718	1800	472	5408	1586	3491	1024
RND-NV5318	1800	531	6884	2019	4444	1303

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs (British Thermal Units). All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
