Reina Neva Vertical Double Radiators in RAL Colour Finishes

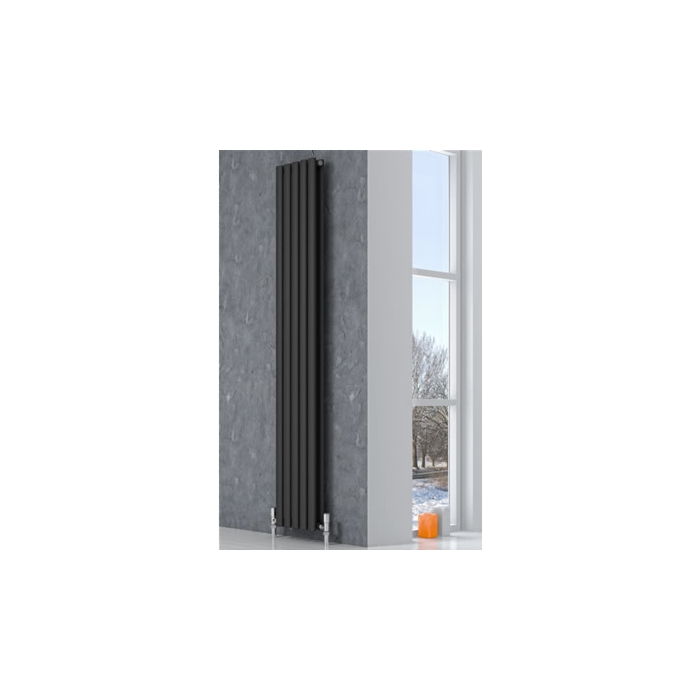

Reina Neva Vertical Double Radiator in RAL Colour Finishes

The Reina Neva Radiator is now available in a choice of 40 exciting RAL Colours. All finishes are powder coated and available within 7 working days.

It is an ideal choice to create a contemporary feel at an outstanding price. The Reina Neva Designer radiator has a sleek and clean style that will enhance any room.

Also available for next working day delivery in White, Anthracite and Chrome finishes, as well as Single and Double options and Horizontal and Vertical ranges - there's a Reina Neva model that is suitable for every installation.

The Reina Neva Vertical can also be mounted horizontally. A different set of wall mounting brackets will be required to install horizontally and these must be purchased with the radiator by selecting the 'Horizontal' option from the drop down box above.

Wall to Pipe Centres is 65mm
Depth from Wall to Front of Radiator: 103mm

Supplied with brackets, air and blanking vent.
Made from superior quality mild steel with high quality welding.

5 year manufacturers guarantee.

PLEASE ALLOW AT LEAST 7 WORKING DAYS FOR DELIVERY.

Manufactured in Europe to EN442 standards.

Please note; Reina Neva RAL Coloured radiators are made to order and as such are non-returnable unless faulty.

Model	Height (mm)	Width (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
RND-NV2315D	1500	236	3420	1003	2208	647
RND-NV2915D	1500	295	4252	1247	2745	805
RND-NV3515D	1500	354	5104	1497	3295	966
RND-NV4115D	1500	413	5955	1746	3844	1127
RND-NV4715D	1500	472	6807	1996	4394	1288
RND-NV5315D	1500	531	7656	2245	4942	1449
RND-NV2318D	1800	236	4103	1203	2649	777
RND-NV2918D	1800	295	5104	1497	3295	966
RND-NV3518D	1800	354	6123	1796	3953	1159
RND-NV4118D	1800	413	7145	2095	4612	1352
RND-NV4718D	1800	472	8166	2395	5271	1546
RND-NV5318D	1800	531	10395	3048	6710	1968

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs (British Thermal Units). All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
