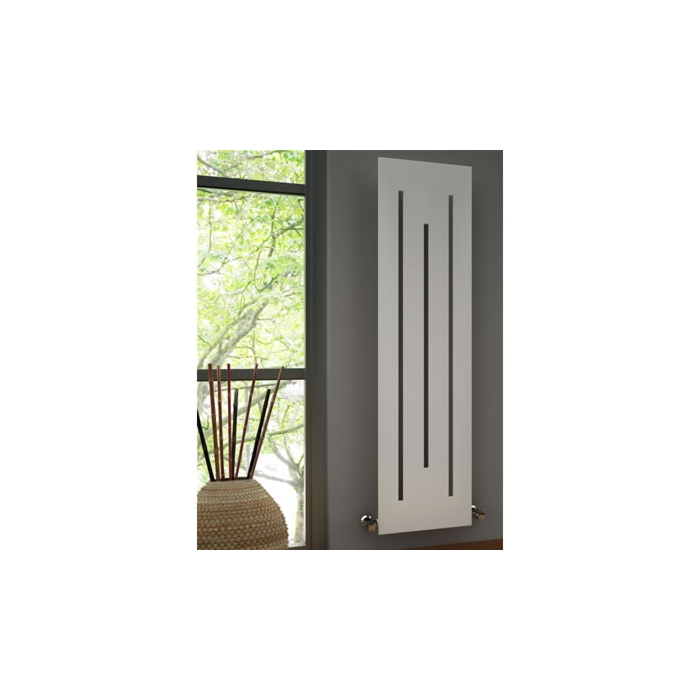

Reina Line Radiators

The Reina Line Radiator is a new addition to the Reina range.
Available in white Ral 9016 Textured or Ral 7016 anthracite Textured finish.
5 year guarantee.
Supplied with brackets, air and blanking vent.
Wall to front face 68 - 88mm.
Wall to Pipe Centres: 35 - 55mm
Delivered usually 1-2 working days

Model Reference	Height (mm)	Width (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
RND-LE418	1800	490	5208	1527	3362	986

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs (British Thermal Units). All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
