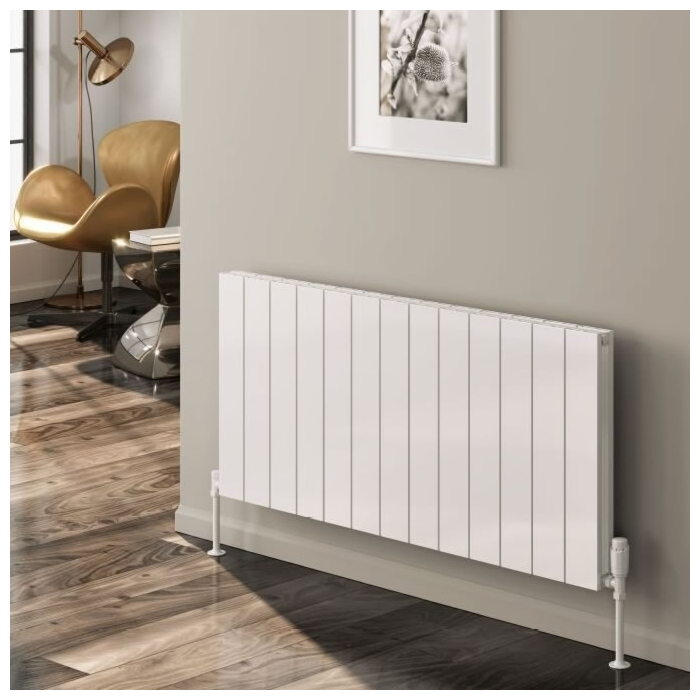

Description / Reina Casina Horizontal Aluminium Radiator
Reina Casina Horizontal Aluminium Radiator. Reina Casina Radiators are made from aluminium offering a lighter radiator with great heating performance.
Available as a Single or Double radiator in 4 finishes - White, Anthracite, Satin Black or Satin.
White and Anthracite are a textured finish.
PLEASE NOTE SATIN AND SATIN BLACK FINISHES ARE LIMITED STOCK AS THEY ARE BEING DISCONTINUED - PLEASE CALL US IF YOU WISH TO CHECK AVAILABILITY
Suitable for Central, Electric and Dual Fuel Heating Systems - see links at the bottom of the page for additional required components for use as a sealed electric or dual fuel radiator.
5 Year Guarantee
Delivery usually available within 1 - 2 working days.
Model Reference | Height (mm) | Width (mm) | Tube Qty | Wall Distance (mm) | Reina Output Btus 70 deg | Reina Output Watts 70 deg | UK Standard Output Btus 50 deg | UK Standard Output Watts 50 deg |
---|---|---|---|---|---|---|---|---|
A-CSN060047S | 600 | 470 | 5 | 65 | 2420 | 710 | 1562 | 458 |
A-CSN060066S | 600 | 660 | 7 | 65 | 3388 | 994 | 2187 | 642 |
A-CSN060085S | 600 | 850 | 9 | 65 | 4356 | 1277 | 2812 | 824 |
A-CSN060104S | 600 | 1040 | 11 | 65 | 5322 | 1561 | 3436 | 1008 |
A-CSN060123S | 600 | 1230 | 13 | 65 | 6290 | 1845 | 4060 | 1191 |
A-CSN060142S | 600 | 1420 | 15 | 65 | 7259 | 2129 | 4686 | 1374 |
A-CSN060047D | 600 | 470 | 10 | 86 | 3727 | 1093 | 2406 | 706 |
A-CSN060066D | 600 | 660 | 14 | 86 | 5218 | 1530 | 3368 | 988 |
A-CSN060085D | 600 | 850 | 18 | 86 | 6708 | 1967 | 4330 | 1270 |
A-CSN060104D | 600 | 1040 | 22 | 86 | 8196 | 2403 | 5291 | 1551 |
A-CSN060123D | 600 | 1230 | 26 | 86 | 9687 | 2841 | 6253 | 1834 |
A-CSN060142D | 600 | 1420 | 30 | 86 | 11179 | 3278 | 7216 | 2116 |
Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs (British Thermal Units). All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
More Information
SKU | CASINA HORIZ |
---|---|
Brand | Reina |
