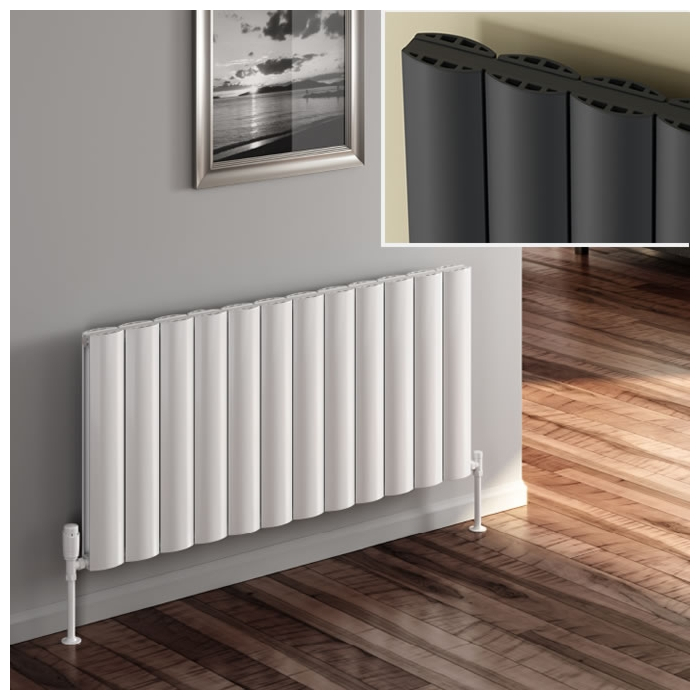

Reina Belva Horizontal Aluminium Radiator

Reina Belva Horizontal Aluminium Radiator. Reina Belva Radiators are made from aluminium offering a lighter radiator with great heating performance.

Suitable for Central, Electric and Dual Fuel Heating Systems - see links at the bottom of the page for additional required components for use as a sealed electric or dual fuel radiator.

5 Year Guarantee

Delivery usually available within 1 - 2 working days.

Model Reference	Height (mm)	Width (mm)	Tube Qty	Wall Distance (mm)	Reina Output Btus 70 deg	Reina Output Watts 70 deg	UK Standard Output Btus 50 deg	UK Standard Output Watts 50 deg
A-BLV060041S	600	412	4	68	1726	506	1114	327
A-BLV060062S	600	620	6	68	2588	759	1671	490
A-BLV060082S	600	828	8	68	3450	1012	2227	653
A-BLV060103S	600	1036	10	68	4312	1265	2784	817
A-BLV060124S	600	1244	12	68	5175	1518	3341	980
A-BLV060145S	600	1452	14	68	6038	1771	3898	1143
A-BLV060041D	600	412	8	89	2658	779	1716	503
A-BLV060062D	600	620	12	89	3986	1169	2573	755
A-BLV060082D	600	828	16	89	5313	1558	3430	1006
A-BLV060103D	600	1036	20	89	6640	1947	4286	1257
A-BLV060124D	600	1244	24	89	7970	2337	5145	1509
A-BLV060145D	600	1452	28	89	9299	2727	6003	1760

Confused by the difference between the Reina Outputs and the UK Standard Outputs indicated above? Heat outputs are shown in both Watts and BTUs (British Thermal Units). All outputs are based on the system’s likely operating temperature and is usually shown as Delta T 50 Degrees which is the current European and UK Rating. Historically, the UK rating was calculated at Delta T 60 Degrees. We generally display the output calculated at Delta T 50 Degrees. However, Reina calculate and illustrate their outputs based on Delta T 70 Degrees. The result of this is that their outputs appear artificially higher than other manufacturers. This could potentially result in our customers purchasing a radiator that does not achieve the heat output that is required. As a consequence, we display Reina's output (as featured in their brochure) at Delta T 70 as well as the UK Standard Output calculated at Delta T 50. If you are trying to achieve a certain output, it is most probable that you will need to refer to the UK Standard outputs on the table above but if you are unsure, please check with your installer.
