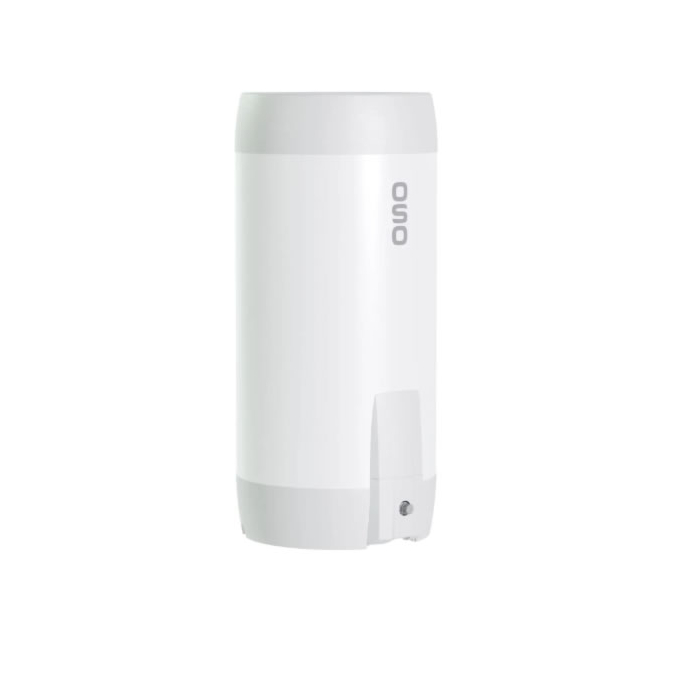

OSO Super Coil S2C Indirect Hot Water Cylinders
Description / OSO Super Coil S2C Indirect Hot Water Cylinders
The SUPER COIL – S2C Indirect stainless steel unvented Hot Water Cylinder is designed for connection to a gas boiler. It has a unique patented design making installation quick and efficient and is the most space efficient cylinder available. In conjunction with a System boiler the SUPER COIL becomes a part pre-plumbed cylinder. S2C has a 25 year warranty.
The S2C is a replacement for the Super Coil S but please be aware the new version is slightly taller and wider than the original units.
It incorporates concealed wiring, and a unique design with the blending valve, temperature & pressure relief valve and expansion vessels, motorised valve and all pipework hidden under a lid. All of the connections are on top of the cylinder making the S2C cylinder fast and easy to install. When tested in real life conditions, more S2C cylinders were installed in the same time as our competitors’ products due to the unique design. S2C cylinders also has a smooth limescale resistant heating coil ensuring efficient heat transfer.
The S2C comes as standard with an ultra grade INCOTEC immersion heater as backup which can be connected to Solar panels with appropriate connection interface.
S2C range to 210 litres can share a footprint with a washing machine, using additional washing machine frame.
The S2C is factory fitted with a flow through expansion valve with minimum pipework to the vessels in accordance with the S2C building and water regulations approval.
WHY SUPER COIL S2C?
Labour saving up to 70%
Pre-plumbed unit for system boiler
Integral expansion vessels
Shortest cylinder system in the market
Unique space efficiency
Unique patented design with a 25 year warranty
Pipes and cables hidden
Fitting template provided
Maintenance friendly
Advantages
- S-DESIGN – All connections hidden
- NANOPUR – High-grade insulation
- ULTRAWELD – Superior corrosion resistance
- INCOTEC – High durability in hard water
- SMOOTH COIL – Does not encourage limescale build-up
Key Components
Mixing valve - Preset 60 °C
Thermostat - Adjustable 20-70 °C - Preset 60 °C Immersion 3kw
P&T safety valve - 10 bar—90-95°C
Integrated G3 kit - 2 port zone valve / Strainer / PRV / expansion relief / drain cock / tundish
Motorized valve - Honeywell V4043H1056C
Expansion vessel - 12 L supplied factory fitted
| Model | Diameter (mm) | Height (mm) | Weight (Empty) (kg) | Energy Rating (A+-F) |
|---|---|---|---|---|
| S2C 150 | 595 | 1110 | 41 | B |
| S2C 180 | 595 | 1200 | 45 | B |
| S2C 210 | 595 | 1375 | 55 | B |
| S2C 250 | 595 | 1645 | 57 | C |
| S2C 300 | 595 | 1780 | 61 | C |
More Information
| Brand | OSO |
|---|---|
| SKU | OSO SUPER S2C |
