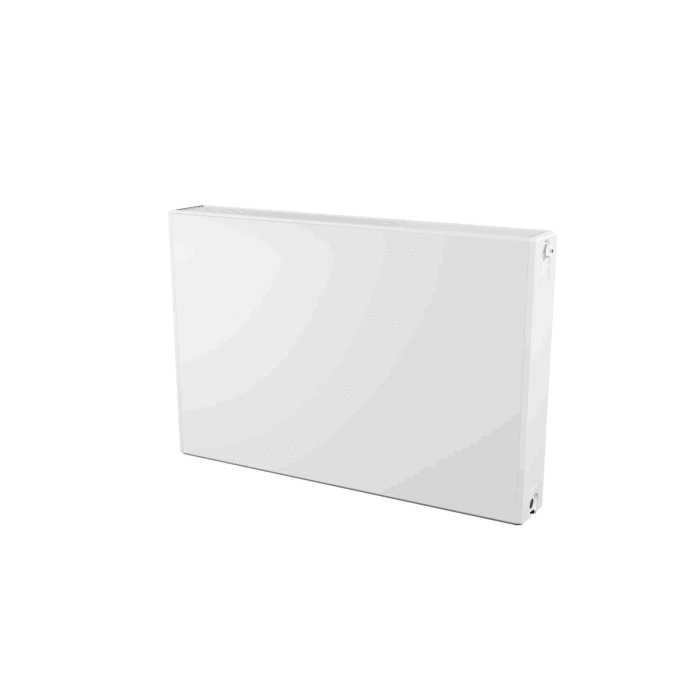

Myson Plan Horizontal Radiators White

The PLAN range offers a contemporary alternative to the traditional panel radiator, combining good looks with leading performance.

Myson Plan radiators are a sleek and contemporary alternative to traditional panel radiators. They feature a flat front panel with a refined finish, decorative grille, and side panels, giving them a minimalist yet stylish look

Available in 4 heights and lengths ranging from 400mm to 2000mm

Features Type 11, Type 21 and Type 22

Full 10 year warranty.

Manufactured and tested to BS EN 442 & EN 442

Finished in White (RAL 9016) as standard

Air vent and plug packs are included in the packaging.

Includes side panels and top grille.

Delivery is usually 3-5 working days but feel free to call and check availability prior to placing your order

Type	Height (mm)	Width (mm)	Watts 50 degrees	Btu's 50 degrees
11	300	600	317	1082
11	300	1000	529	1805
11	300	1400	741	2528
11	300	2000	1058	3610
11	400	400	272	928
11	400	600	408	1392
11	400	800	544	1856
11	400	1000	680	2320
11	400	1200	816	2784
11	400	1400	952	3248
11	400	1600	1088	3712
11	400	1800	1224	4176
11	400	2000	1360	4640
11	500	400	329	1123
11	500	600	494	1686
11	500	800	658	2245
11	500	1000	823	2808
11	500	1200	988	3371
11	500	1400	1152	3931
11	500	1600	1317	4494
11	500	1800	1481	5053
11	500	2000	1646	5616
11	600	400	384	1310
11	600	600	577	1969
11	600	800	769	2624
11	600	1000	961	3279
11	600	1200	1153	3934
11	600	1400	1345	4589
11	600	1600	1538	5248
11	600	1800	1730	5903
11	600	2000	1922	6558
21	500	400	445	1518
21	500	600	668	2279
21	500	800	890	3037
21	500	1000	1113	3798
21	500	1200	1336	4558
21	500	1400	1558	5316
21	500	1600	1781	6077
21	500	1800	2003	6834
21	500	2000	2226	7595
21	600	400	515	1757
21	600	600	773	2637
21	600	800	1030	3514
21	600	1000	1288	4395
21	600	1200	1546	5275
21	600	1400	1803	6152
21	600	1600	2061	7032
21	600	1800	2318	7909
21	600	2000	2576	8789
22	300	600	562	1918
22	300	1000	937	3197
22	300	1400	1312	4477
22	300	2000	1874	6394
22	400	400	479	1634
22	400	600	719	2453
22	400	800	958	3269
22	400	1000	1198	4088
22	400	1200	1438	4906
22	400	1400	1677	5722
22	400	1600	1917	6541
22	400	1800	2156	7356
22	400	2000	2396	8175
22	500	400	578	1972
22	500	600	866	2955
22	500	800	1155	3941
22	500	1000	1444	4927
22	500	1200	1733	5913
22	500	1400	2022	6899
22	500	1600	2310	7882
22	500	1800	2599	8868
22	500	2000	2888	9854
22	600	400	670	2286
22	600	600	1006	3432
22	600	800	1341	4575
22	600	1000	1676	5719
22	600	1200	2011	6862
22	600	1400	2346	8005
22	600	1600	2682	9151
22	600	1800	3017	10294
22	600	2000	3352	11437
