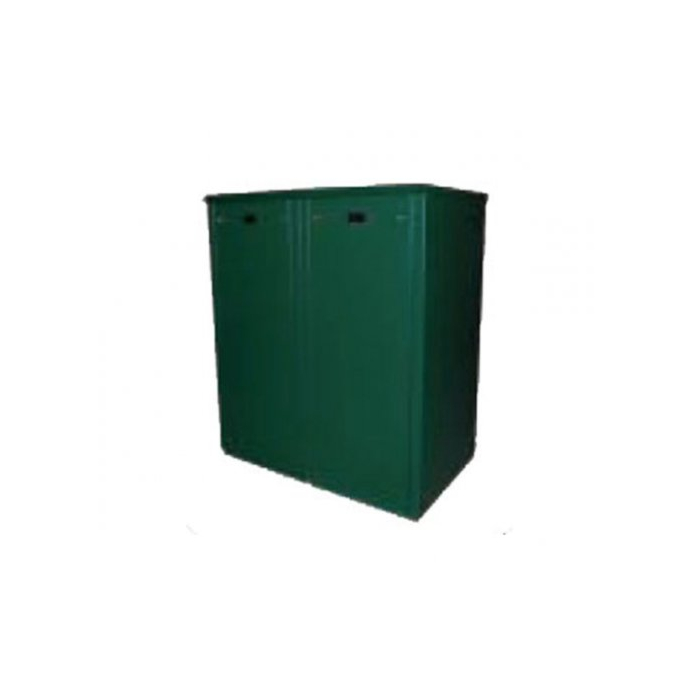

Mistral Outdoor Mega Combi Standard Non-Condensing Oil Boiler
Mistral Outdoor Mega Combi Standard Non-Condensing Boiler
The Mistral Mega Combi Standard range provides for a highly efficient full heating and instant domestic hot water facility for the larger type installations such as barn conversations and country houses.
The Mega Combi models are housed in double width high-quality white casing supplied in two parts for easy handling.
Can run up to 35 litres / min.
The multi directional flue outlet options together with pre punched pipe entry points on both the sides and the back allow for easy and quick installation fit up.
Mistral outdoor boilers have a lockable cabinet door. Servicing can be completed without the need to access the residential area of the property.
Backed by the Mistral guarantee of quality the Outdoor Mega Combi boiler range provides a space saving practical heating and domestic hot water solution for the larger home and commercial type business.
To ensure maximum efficiency, the Mistral Non-Condensing range is manufactured using the same centrally located Y Section waterway heat exchanger, as used in the High-Efficiency Condensing models.
With the exception of the top mounted condensing unit, all components used, are the same for both, ensuring maximum benefit, efficiency and construction advantages are maintained.
To facilitate low-level options, a spacer is available in place of the Condensing unit.
- OUTSIDE ACCESS FOR SERVICING
- STANDARD EFFICIENCY
- 41 - 70 kw
- FRONT SERVICING
- HIGH QUALITY CASING CORROSION RESISTANT
- MULTI DIRECTIONAL FLUE OUTLET
- PRE PUNCHED PIPE ACCESS POINTS
- FROST STAT FITTED FOR PROTECTION
- CAN BE USED IN TANDEM OPERATIONS
Please note this boiler is non-returnable.
Please follow this link to view information on installation exemptions
Please follow this link to see more information on Non Condensing Boilers
Model Code | KW | BTU | Height | Wdith | Depth | Weight |
---|---|---|---|---|---|---|
ODMC5 | 41-50 | 140000-170000 | 1245 | 1100 | 810 | 380 |
ODMC6 | 50-58 | 170000-200000 | 1245 | 1100 | 810 | 380 |
ODMC7 | 58-70 | 200000-240000 | 1245 | 1100 | 810 | 380 |
Brand | MIstral |
---|---|
SKU | ODMC5-ODMC7 |
