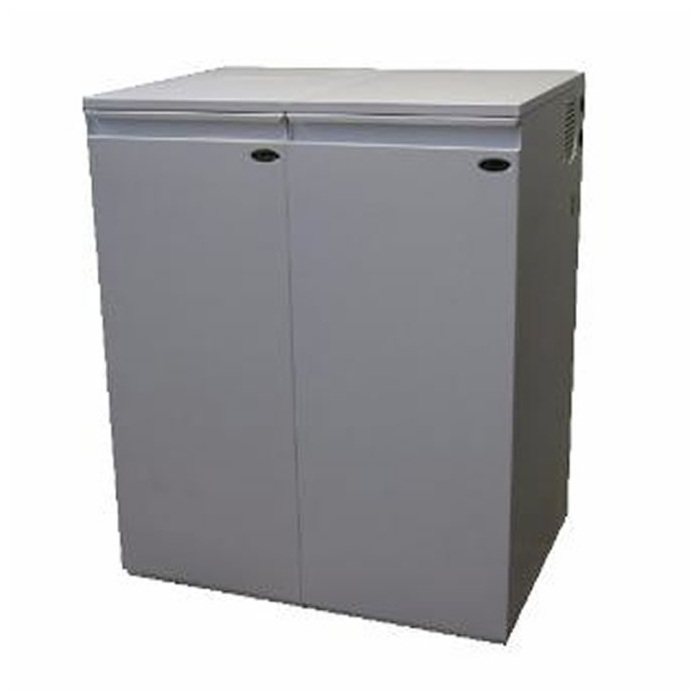

Mistral Mega Combi Plus Non-Condensing Oil Boiler
Mistral Mega Combi Plus Non-Condensing Boiler
The Mistral Mega Combi Plus boasts all the features of the Combi Standard model but has the additional feature of an integral 230V electric immersion heater installed in the boiler heat store.
In the event of an oil failure or when it is not required to fully operate the boiler, the immersion heater provides a backup supply of domestic hot water.
The Combi Plus models are also supplied with a 7 day programmer allowing 2 individual daily time zones to be selected.
Backed by the Mistral guarantee of quality the Combi Plus boiler range provides an ideal boiler choice for installations where it is important to maintain a domestic hot water supply at all times.
The Mistral Mega Combi Standard range provides for a highly efficient full heating and instant domestic hot water facility for the larger type installations such as barn conversations and country houses.
The Mega Combi models are housed in double width high-quality white casing supplied in two parts for easy handling.
Can run up to 35 litres / min.Â
The multi-directional flue outlet options together with pre-punched pipe entry points on both the sides and the back allow for easy and quick installation fit up.
The removable front casing permits easy access for commissioning and future service.
Backed by the Mistral guarantee of quality the Mega Combi Standard boiler range provides a practical heating and domestic hot water facility for the larger type home and commercial type business.
To ensure maximum efficiency, the Mistral Non-Condensing range is manufactured using the same centrally located Y Section waterway heat exchanger, as used in the High-Efficiency Condensing models.
With the exception of the top mounted condensing unit, all components used, are the same for both, ensuring maximum benefit, efficiency and construction advantages are maintained.
To facilitate low-level options, a spacer is available in place of the Condensing unit.
Â
- STANDARD EFFICIENCY
- 41 - 70 kw
- FRONT SERVICING
- HIGH QUALITY CASING
- MULTI DIRECTIONAL FLUE OUTLET
- CONVENTIONAL OR BALANCED FLUE OPTION
- PRE PUNCHED PIPE ACCESS POINTS
- CAN BE USED IN TANDEM OPERATIONS
- AVAILABLE AS OUTDOOR MODEL
Â
Please Note - A boiler spacer adapter (B-ADPT) is required when using a low level flue. Some customers also use a spacer when using a high level flue
Please note this boiler is non-returnable. Â Â Â
Please follow this link to view information on installation exemptions
Please follow this link to see more information on Non Condensing Boilers
Â
Model Code | KW | BTU | Height | Wdith | Depth | Weight |
---|---|---|---|---|---|---|
MC5 PLUS | 41-50 | 140000-170000 | 1230 | 1100 | 755 | 380 |
MC6 PLUS | 50-58 | 120000-200000 | 1230 | 1100 | 755 | 380 |
MC7 PLUS | 58-70 | 200000-240000 | 1230 | 1100 | 755 | 380 |
Â
Â
Â
Â
Â
Brand | MIstral |
---|---|
SKU | MC5PLUS-MC7PLUS |
