MHS Liberty 954mm High Cast Iron Column Radiators in Primer Finish

SKU
LIB954-B PRIMER
MHS Liberty 954mm High Cast Iron Column Radiators in Primer Finish

MHS Liberty 954mm High Cast Iron Column Radiators in Primer Finish

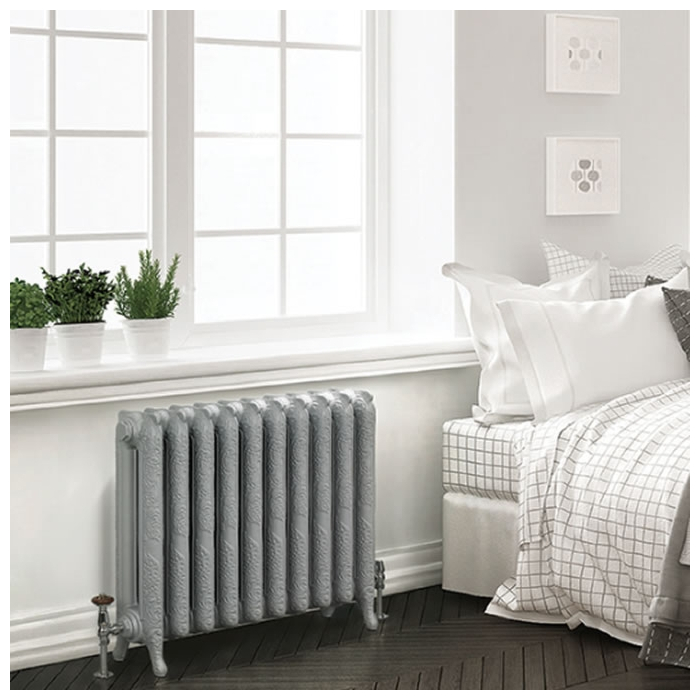

The MHS Liberty is made from cast iron and supplied in Umber Grey Primer as standard that requires over painting, with painted finishes available at additional cost. The radiator has a maximum working pressure of 6 bar with a maximum test pressure of 7.8 bar (water test only). Feet and wall ties are supplied as standard. All radiators are supplied with ½” bsp-f (BBOE) connections, ¾”or 1” connections.

The MHS Liberty radiator carries a 10-year guarantee against manufacturing defects.

Please allow 1 weeks for delivery of Primer Finish MHS Liberty radiators.

Model Height (mm) No of Sections Width (mm) Depth D1 Depth D2 Wall to Face Pipe Centres From Wall Watts
LIB954-B-6 954 6 480 203mm 235 or 245mm 134 or 144mm 906
LIB954-B-7 954 7 556 203mm 235 or 245mm 134 or 144mm 1057
LIB954-B-8 954 8 632 203mm 235 or 245mm 134 or 144mm 1208
LIB954-B-9 954 9 708 203mm 235 or 245mm 134 or 144mm 1359
LIB954-B-10 954 10 784 203mm 235 or 245mm 134 or 144mm 1510
LIB954-B-11 954 11 860 203mm 235 or 245mm 134 or 144mm 1661
LIB954-B-12 954 12 936 203mm 235 or 245mm 134 or 144mm 1812
LIB954-B-13 954 13 1012 203mm 235 or 245mm 134 or 144mm 1963
LIB954-B-14 954 14 1088 203mm 235 or 245mm 134 or 144mm 2114
LIB954-B-15 954 15 1164 203mm 235 or 245mm 134 or 144mm 2265
Full Features
Brand MHS
