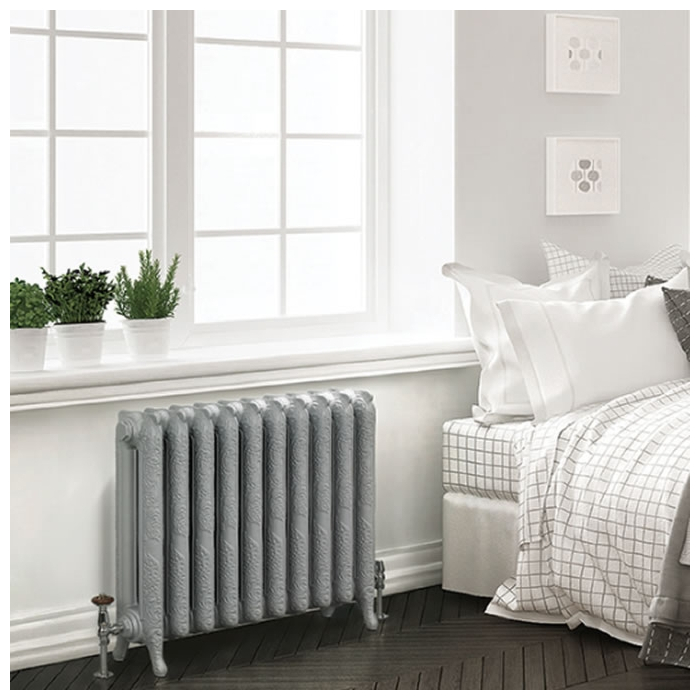

MHS Liberty 760mm High Cast Iron Column Radiators in Primer Finish

SKU
LIB760-B PRIMER
MHS Liberty 760mm High Cast Iron Column Radiators in Primer Finish

MHS Liberty 760mm High Cast Iron Column Radiators in Primer Finish

The MHS Liberty is made from cast iron and supplied in Umber Grey Primer as standard that requires over painting, with painted finishes available at additional cost. The radiator has a maximum working pressure of 6 bar with a maximum test pressure of 7.8 bar (water test only). Feet and wall ties are supplied as standard. All radiators are supplied with ½” bsp-f (BBOE) connections, ¾”or 1” connections.

The MHS Liberty radiator carries a 10-year guarantee against manufacturing defects.

Please allow 1 weeks for delivery of Primer Finish MHS Liberty radiators.

Model Height (mm) No of Sections Width (mm) Depth D1 Depth D2 Wall to Face Pipe Centres From Wall Watts
LIB760-B-6 760 6 480 203mm 235 or 245mm 134 or 144mm 726
LIB760-B-7 760 7 556 203mm 235 or 245mm 134 or 144mm 847
LIB760-B-8 760 8 632 203mm 235 or 245mm 134 or 144mm 968
LIB760-B-9 760 9 708 203mm 235 or 245mm 134 or 144mm 1089
LIB760-B-10 760 10 784 203mm 235 or 245mm 134 or 144mm 1210
LIB760-B-11 760 11 860 203mm 235 or 245mm 134 or 144mm 1331
LIB760-B-12 760 12 936 203mm 235 or 245mm 134 or 144mm 1452
LIB760-B-13 760 13 1012 203mm 235 or 245mm 134 or 144mm 1573
LIB760-B-14 760 14 1088 203mm 235 or 245mm 134 or 144mm 1694
LIB760-B-15 760 15 1164 203mm 235 or 245mm 134 or 144mm 1815
Full Features
Brand MHS
