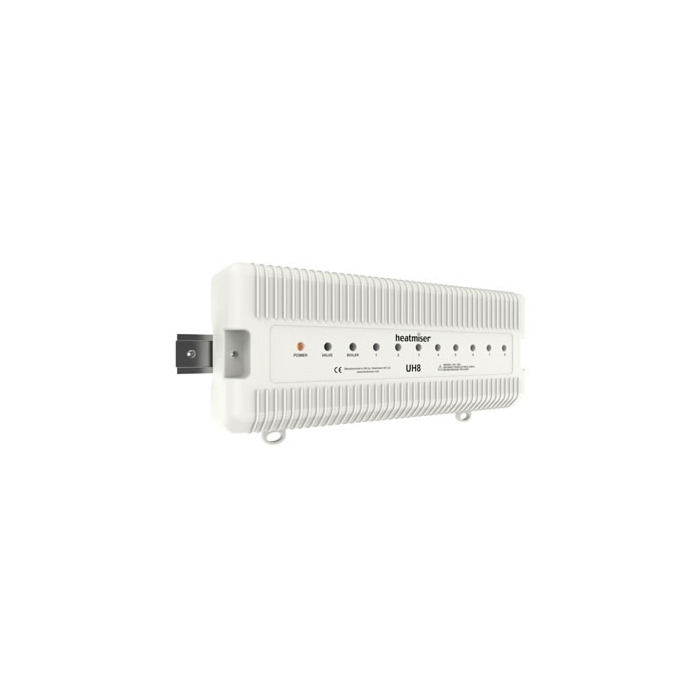

Heatmiser UH8 230v 8 Zone Wiring Centre
The Heatmiser UH8 is designed to work with the Heatmiser TM4 230v 4 channel time clock and the Heatmiser DS-SB 230v Set back thermostat but equally could be used with any 230v room thermostat.
Up to 8 zones can be controlled from the Heatmiser UH3.
On board the Heatmiser UH8 are two heating time channels, each zone allows you to specify which time channel it should follow.
2 additional time channel connections are provided for hot water control or other auxiliary devices.
On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve.
A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.
A simple slide switch makes zone 8 suitable forcontrolling a radiator zone.
When used for controlling radiators, zone 8 does not enable the underfloor heating pump, valve and boiler.
Up to 4 actuators can be connected to each zone.
Dimensions (HxWxD) 220x290x70mm
PLEASE NOTE :- UNFORTUNATELY WE ARE UNABLE TO DELIVER HEATMISER PRODUCTS TO NORTHERN IRELAND
SKU | UH8 |
---|---|
Brand | Heatmiser |
