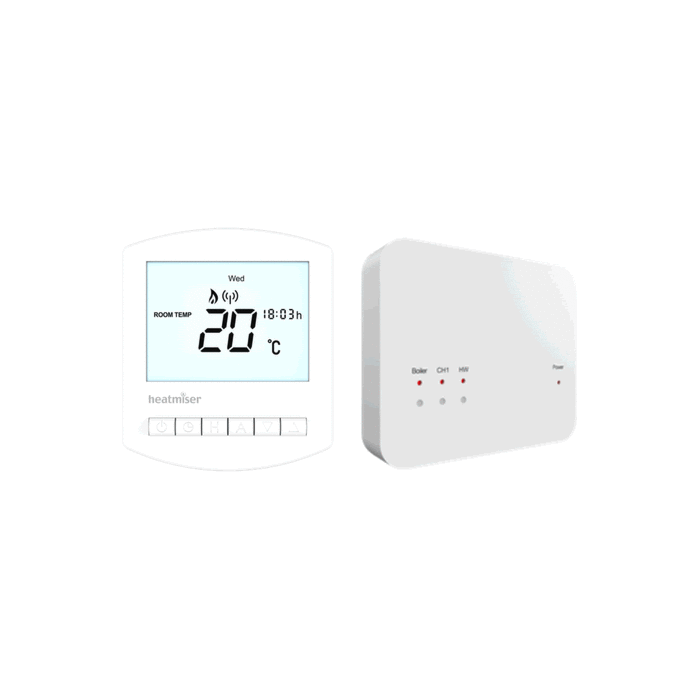

Heatmiser Slimline RF Kit v2 - Multi Mode Slimline Stat with RF Switch

Heatmiser Slimline-RF Kit V2

The Heatmiser Slimline-RF Kit comprises of a Heatmiser Slimline-RF Multi Mode Thermostat and RF-Switch wireless receiver. The receiver is hard wired to the boiler, so is normally positioned next to the boiler or you could use the existing thermostat cabling. The wireless thermostat is then wall mounted within range of the receiver (up to 100 meters open space)

The RF Switch is a 2 Channel Receiver providing 2 changeover contacts, 1 for the heating circuit and 1 for the hot water circuit. In addition, the RF Switch provides a volt free switch for the boiler. The RF Switch can be paired to the UH8-RF to provide a wireless link for the boiler signal.

Multi Mode: Can be setup to work in one of three modes;

Non Programmable Thermostat
Programmable Thermostat
Programmable Thermostat with Hot Water Output
Features include


Wireless Thermostat - 868MHz
Heating & Hot water Outputs
Distance: Up to 100 Meters Open Space
Large Back Lit Display
5/2 or 7 Day Programming Modes
4 Comfort Levels per Day
Optimum Start
Wireless Fail Safe Function
ºC/F Option
05ºC - 35ºC Range
Holiday Function
Hold Function
Wall Mount
Frost Protection
Key Lock Facility
Battery: 2 x AAA (Included)
Compatible with UH8-RF & Heatmiser Boost
Remote Air Sensing Facility (Ideal for measuring the air temperature up to 20 meters from the thermostat, in bathrooms for example. Remote sensor probe required, not included)
Dimensions: 98mm x 85mm x 24mm (Height, Width, Depth)

Kit Includes

1 x Slimline-RF 1 x RF Switch
