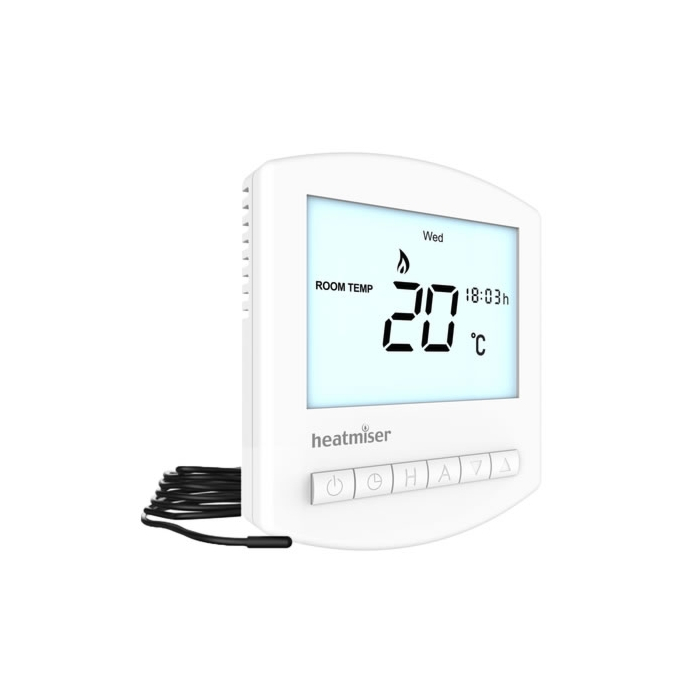

Heatmiser Slimline-E v3 Electric Underfloor Heating Thermostat

The Heatmiser Slimline-E V3 Electric Underfloor Heating Thermostat has been designed specifically with electric floor heating in mind.

It is compatible with all electic floor systems with a total load less than 16A

The Heatmiser Slimline-E V3 electric floor heating thermostat allows you to control the system in a variety of ways;

1. Floor sensor only. Ideal when you only want to control the floor surface temperature. (Conservatories for example)

2. Air and Floor. The thermostat controls the air temperature whilst using the floor sensor to prevent overheating of the floor system.

3. Remote Air and Floor. Ideal for remote control of the air and floor temperature (Bathrooms for example)

Non Programmable, 5/2 day, 7 day or 24 hour programming (selectable in software)

Thermostat or Timer Mode

Temperature Hold Feature

Holiday Feature

C / F selectable

Self Learning Optimum Start on 1st and 3rd

level Keylock Facility

Frost protection with adjustable temperature setting

16A Switch rating (3,680 watts)

White Backlight (turns off after 30 seconds)

Floor sensor included

Supply: 230v AC

Dimensions: 98x85x13mm

Weight: 195g

(Please note 13mm depth is after installation) Probe Installation: We always suggest installing the probe into a conduit so that it can be retrieved if required. This conduit is not supplied with the thermostat.

PLEASE NOTE :- UNFORTUNATELY WE ARE UNABLE TO DELIVER HEATMISER PRODUCTS TO NORTHERN IRELAND
