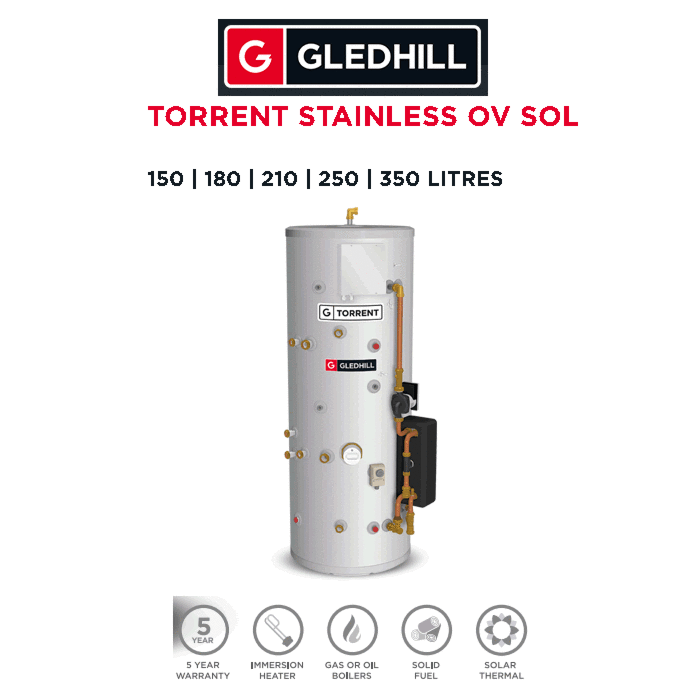

Gledhill Torrent Stainless OV SOL Solar Thermal Store Cylinders

The Torrent Stainless OV SOL utilises a high-efficiency solar coil to allow the homeowner to benefit from natural solar energy as well as a wide variety of alternative energy inputs. Once the solar energy available to the Torrent Stainless OV SOL is insufficient to heat the store, it will revert to a conventional boiler as its primary heat source.

Hot water and heating:
The Torrent Stainless OV SOL provides high-performance mains pressure hot water via the highly efficient plate heat exchanger. The central heating circuit can be supplied directly from an open vented boiler although an auxiliary heating circuit can be connected from the store in which case both the solar and solid fuel energy will also provide an input to the auxiliary heating circuit.

Electric back-up:
An immersion element is provided, and it is normally envisaged that this will be used as an emergency electric back-up for hot water and to provide emergency energy to the auxiliary heating circuit. However, if a low carbon or renewable electricity source is available then this could be connected to the immersion element to provide heat input to the thermal store, decreasing the use of the fossil fuel boiler and hence reducing running costs.

Features and Benefits:
- Specifically designed for use with solar thermal panels.
- Utilises open vented boiler to heat the store directly.
- 3kW immersion heater for emergency back-up.
- Utilises solid fuel connections.
- Provides mains pressure hot water

Notes:
• Additional height for feed and expansion tank will need to be allowed if it is to be sited in the same cupboard.
• Vent pipes shown through the side of the feed and expansion tank may not be suitable for all systems. Installers must check suitability.
• The standard open vented store relies on a feed and expansion tank suitably sited above the highest radiator point to provide sufficient head for the system. As the domestic hot water is at mains pressure, the Torrent Stainless OV Sol itself can be sited anywhere in the property.
• The feed and expansion tank must be sized to take the water expansion of the whole system (ie. solid fuel boiler, cylinder, open flue boiler and auxiliary heating).
• The feed and expansion tank is not supplied as standard with the unit, but is available as an optional extra at the time of order.
• For all solid fuel applications, copper feed and expansion tanks are required and are available as an optional extra at the time of order.
