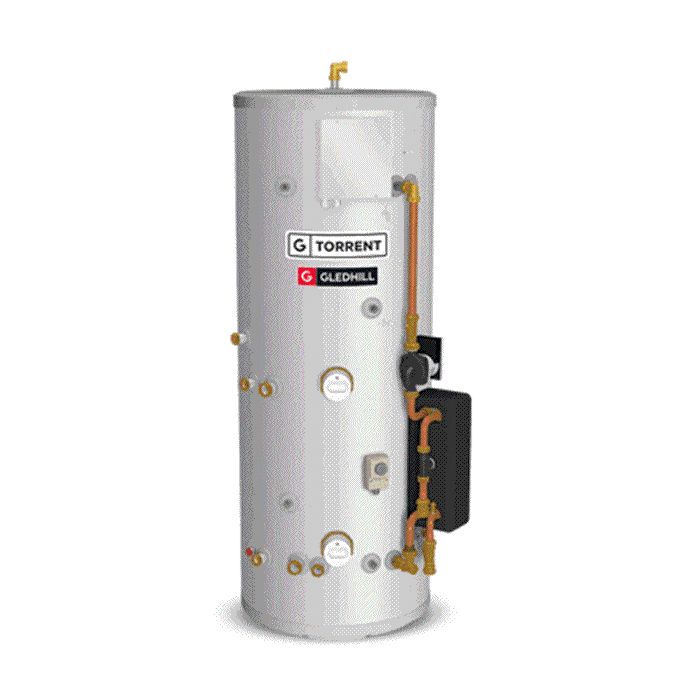

Gledhill Torrent Stainless OV Main Pressure Thermal Store Cylinder

As low as £1,232.40 £1,027.00
Gledhill Torrent Stainless OV Main Pressure Thermal Store Cylinder

The Gledhill Torrent Stainless OV thermal store replaces the Gledhill Torrent Eco OV cylinder and provides the perfect solution to a homes heating and hot water requirements. It has more options than any other thermal store cylinder and is designed to reduce heating costs by offering complete flexibility for householders to use multiple energy sources.

Gledhill Torrent Stainless OV allows the homeowner to utilise inputs from a wood burning or solid fuel boiler to supplement the energy generated by a conventional boiler. The Torrent Stainless OV can be programmed to maximise all alternative energy sources, before diverting to a conventional boiler.

One of the benefits of the open vented boiler configuration is that the whole output of the boiler is available to the thermal store. This will provide an improvement in the operational efficiency of the boiler, reducing the primary energy usage and running costs.

Hot water and heating:
The Torrent Stainless OV provides high-performance mains pressure hot water via the plate heat exchanger. The heat energy provided from the primary heat source and/or solid fuel input is circulated from the store to the central heating circuit, allowing rapid heat-up of a radiator system.

Electric-only installations:
In situations where no gas or solid fuel source is available the Torrent Stainless OV can be used exclusively from the two 3kW electric immersion elements which will provide both hot water and heating for the property. The obvious application is apartments where no gas main is available, but this could also be appropriate where electricity is available from a renewable or low carbon source.

It is possible for the auxillary heating to be supplied from the store, but this is only powered by the lowest immersion. It is important to note that the design heat loss, of the rooms to be heated, must be less than the lowest immersion power.

If connected to the standard grid then the thermal store is the perfect solution to maximise usage of an off-peak tariff where arrangements should be made to power the lower immersion element, in order to minimise the running costs.

Key Features:
- Utilises open vented boiler to heat the store directly, with 3kW immersion heaters for emergency back-up
- 3kW immersion heaters available when electric only is used as the primary heat source
- Utilises solid fuel connections
- Blanking caps supplied.
- Provides mains pressure hot water

Description Height (mm) Diameter (mm) Volume Max Flow Rate Maximum Dwelling Type
TST150-OV 1118mm 550mm 148L 26.5 1 Bath, 1-2 Bed,
TST180-OV 1306mm 550mm 178L 26.5 1 Bath, 1 Shower, 2-3 Bed,
TST210-OV 1494mm 550mm 208L 26.5 2 Bath, 1 Shower, 2-3 Bed,
TST250-OV 1744mm 550mm 248L 26.5 2 Bath, 2 Shower, 3-4 Bed,
TST350-OV 1765mm 630mm 345L 26.5 3 Bath, 2 Shower, 4-5 Bed,
• Additional height for feed and expansion tank will need to be allowed if it is to be sited in the same cupboard.
• Vent pipes shown through the side of the feed and expansion tank may not be suitable for all systems. Installers must check suitability.
• The standard open vented store relies on a feed and expansion tank suitably sited above the highest radiator point to provide sufficient head for the system.
• The feed and expansion tank must be sized to take the water expansion of the whole system (ie. solid fuel boiler, cylinder, open flue boiler and auxiliary heating).
• The feed and expansion tank is not supplied as standard with the unit, but is available as an optional extra at the time of order.
• For all solid fuel applications, copper feed and expansion tanks are required and are available as an optional extra at the time of order.
Full Features
Brand Gledhill
