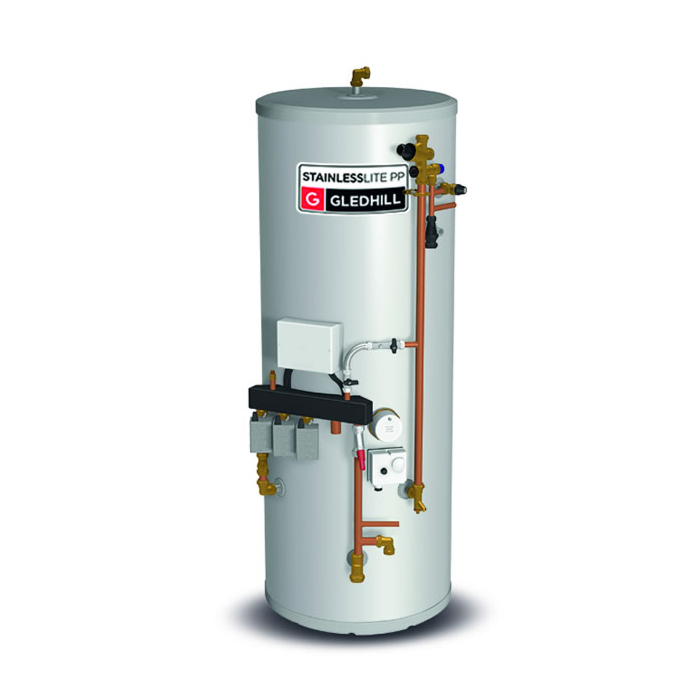

Gledhill StainlessLite Pre Plumbed System Plus Indirect Unvented Cylinders

SKU
PROINPPSP
As low as £769.20 £641.00
Gledhill StainlessLite Pre Plumbed System Plus Indirect Cylinders

Gledhill Stainless Lite Pre-Plumbed System Plus Indirect Unvented Cylinder For System Boilers

Based on the StainlessLite Pre-Plumbed, the Stainlesslite System Plus offers a ‘plug & play’ solution for use with system boilers.

Pre-plumbed indirect stainless steel unvented cylinder designed to be fitted with a System only boiler and comes complete with 2 heating zones.

Designed with the new build housing market in mind, the StainlessLite System Plus provides a system boiler alternative to the StainlessLite Pre-Plumbed, whilst still offering the pre-plumbed benefits to reduce installation time and a standardised configuration across multiple dwelling sites.

Available in 6 sizes ranging 120 litres to 300 litres, the indirect cylinder also benefits from the key features within the StainlessLite range, with a wide base to improve stability, colour matched components to improve appearance and a 25 year warranty, promising you peace of mind.

50mm of our HCFC free Enviro Foam insulation to achieve astonishingly low levels of heat loss, which maximises energy efficiency for your customers.

Pre-Plumbed Indirect Unvented Cylinder Features:

  • KEY FEATURES
    • B rated up to 210L
    • Designed with flat top to increase insulation
    • Wide base to improve unit stability
    • Quality components ensure a reliable, durable product
    • Designed to be fitted with system boilers
    • Manifold configuration comes complete with two heating zones
    • Tappings vertically aligned for easier pipework connections
    • Pre-plumbed kit guarantees standardised pipe configuration for efficient new-build installations
    • Fitting template helps speed up installation
    • Corrugated coil provides increased heat transfer and prevention of scale build up
    • Optional heating expansion kit available at time of order
    • Optional room thermostats available at time of order, with one and two channels, to allow for two heating zones



Gledhill unvented cylinder installation guide - Click Here



Description   IND120 IND150 IND180 IND210 IND250 IND300
Product Stock code  PROIN120PPSP   PROINT150PPSP   PROINT180PPSP   PROINT210PPSP   PROINT250PPSP   PROINT300PPSP
ErP rating B B B B C C
Heat loss (watts)

39

47 55 62 74 86
Capacity (litres) 119 148 178 208 248 287
Height (mm) 931 1118 1306 1494 1744 1990
Diameter (mm) 550 550 550 550 550 550
Weight (empty) kg 33 36 41 44 49 54
Weight (full) kg 152 184 219 252 297 341
Heat up time min 21 25 30 32 36 38
Number of immersions 1 1 1 1 2 2
HSecondary return NO NO NO YES YES YES



What Do You Get In The Box?

  • 1 x Pre-plumbed Stainless Lite Plus Unvented cylinder
  • 1 or 2 x 3KW Incoloy 825 immersion heater
  • Portable Expansion vessel
  • Lift up temperature and pressure relief valve
  • 3 Bar inlet control
  • Compression fittings supplied with unvented products
  • 90 degree elbow supplied on the hot water draw off to reduce installation time

Gledhill Stainless Lite Warranty

System Ready and Pre-Plumbed cylinder and components against material defect or manufacturingfault for a period of two years from the date of purchase. The two year warranty on the stainless steel inner cylinder will be extended to twenty five years in domestic properties on the registration of the cylinder. (Please read terms of warranty and exclusions)

PLEASE NOTE: Delivery for this item is 7-10 Days as the pre-plumbed cylinders are made to order.



Full Features
Brand Gledhill
SKU PROINPPSP
