Chrome Digital Wall Plate Control for Electric Element

Ingress Protection: IPX4
Voltage: 230-245 Volts AC
Maximum power output: 800w

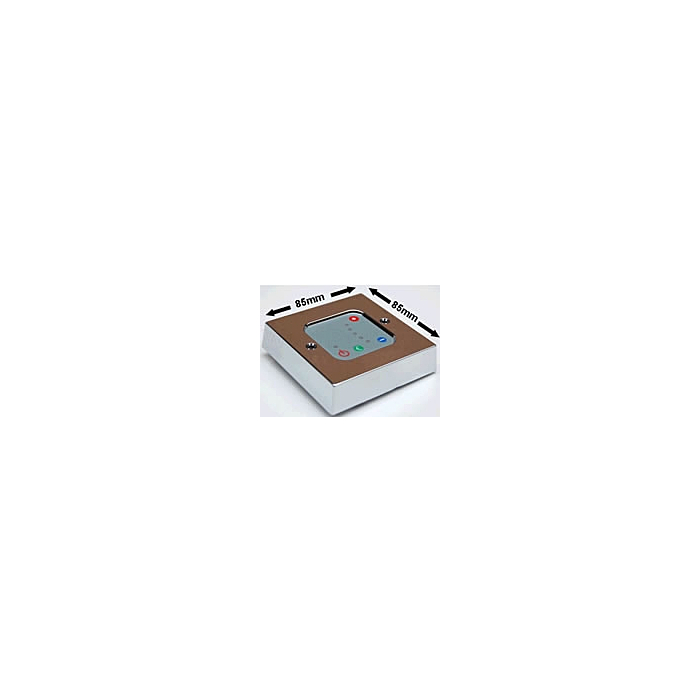

Dimensions: 85 x 85 x 20mm
Approvals: CE, tested to EN55014-1:2006
Warranty: 12 months manufacturers
Full fitting instructions are supplied.

The Thermal Control Unit can be installed as an electric only application as well as a dual fuel installation on a central heating system.

The Power On/Off Button activates the unit. Every press of the upper( + ) Output control button illuminates 1 of the 5 LED lights, increasing the output and the left side ( - ) decreases in the same manner.

1 LED = 40 % power, 2 LEDs = 55% power, 3 LEDs = 70% power, 4 LEDs = 85% power, 5 LEDs = 100% power.

The Eco button switches the unit to a higher power setting for 30 minutes (to heat the towel rail) the power level can be set in the first 30 minutes, then switches to a lower pre-set power for 90 minutes (again this level can be adjusted during this phase). After 2 hours the controller will turn off. Both the 30 and 90 minute setting are saved in the controller.
