Apollo Column Anthracite Radiators

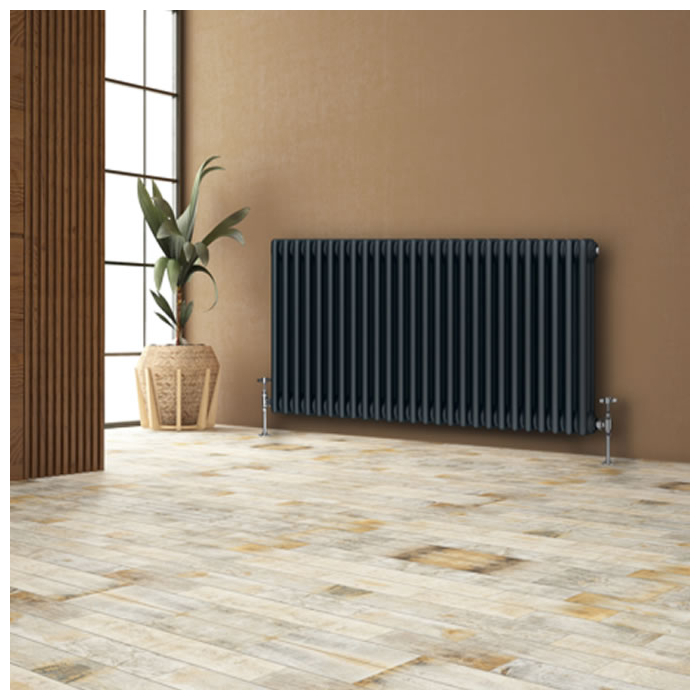

Apollo Column Anthracite Radiators.

This classic steel column radiator is very versatile in both modern and period settings.

Available in Anthracite Grey Matt Textured.

Complete with Wall Brackets.

Column Feet are an optional extra - please select from the drop down if required. These add 155mm to the height.

5 Year Guarantee.

Columns	Height (mm)	Width (mm)	Sections	Watts 50 degrees	Btu's 50 degrees	Section Depth / Width	Back Wall to Pipe Centres (mm)	Back Wall to Front of Rad (mm)
2	1800	380	8	968	3302	68 \ 45	58	95
2	1800	470	10	1210	4128	68 \ 45	58	95
2	1800	560	12	1452	4954	68 \ 45	58	95
2	400	785	17	522	1781	68 \ 45	58	95
2	400	1190	26	754	2572	68 \ 45	58	95
2	600	425	9	387	1320	68 \ 45	58	95
2	600	605	13	559	1907	68 \ 45	58	95
2	600	785	17	774	2640	68 \ 45	58	95
2	600	1010	22	946	3227	68 \ 45	58	95
2	600	1190	26	1118	3814	68 \ 45	58	95
2	600	1370	30	1290	4401	68 \ 45	58	95
3	1800	380	8	1312	4476	100 \ 45	60	112
3	1800	470	10	1640	5595	100 \ 45	60	112
3	1800	560	12	1968	6714	100 \ 45	60	112
3	400	785	17	720	2456	100 \ 45	60	112
3	400	1010	22	880	3002	100 \ 45	60	112
3	400	1190	26	1040	3548	100 \ 45	60	112
3	400	1370	30	1200	4094	100 \ 45	60	112
3	600	605	13	754	2572	100 \ 45	60	112
3	600	785	17	1044	3562	100 \ 45	60	112
3	600	1010	22	1276	4353	100 \ 45	60	112
3	600	1190	26	1508	5145	100 \ 45	60	112
3	600	1370	30	1740	5936	100 \ 45	60	112
4	600	785	17	1332	4544	140 \ 45	90	162
4	600	1010	22	1628	5554	140 \ 45	90	162
4	600	1190	26	1924	6564	140 \ 45	90	162
